|Name:||Induction Motor Stator Coil Double Sides Lacing Machine||Model:||SMT-BZ160|
|Stator I.D.:||Φ25~ Φ100mm||Stator O.D.:||≤Φ160mm|
|Stack Height:||17~100mm||Power Supply:||380V/50/60Hz 3.5Kw|
Coil Wire Binding Machine,
induction motor winding machine

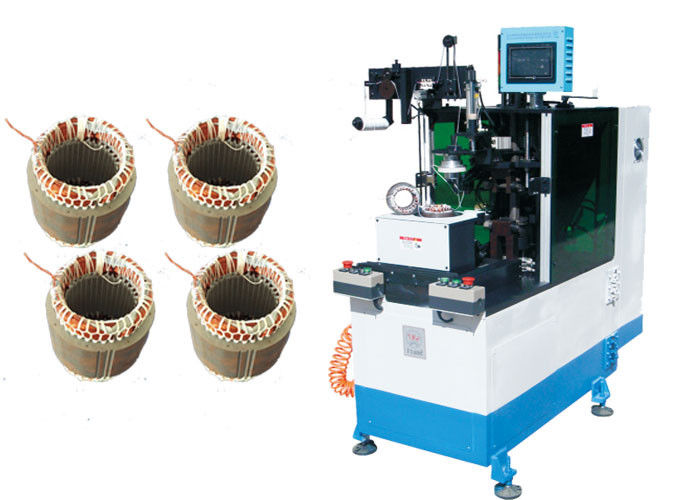

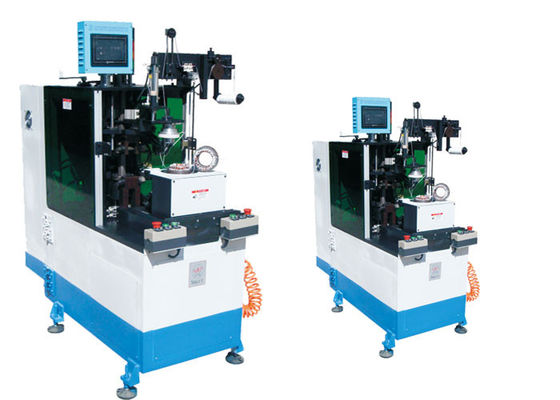

Induction Motor Stator Coil Double Sides Lacing Machine / Lacing Machine SMT - BZ160
This machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement,nozzle swing part, needle up and down movement part, stator indexing part,thread feeding,thread cutting part.
(1) Main Technical Information
|Stator I.D||Φ25~ Φ100mm|
|Height of overhang||≤40mm|
|Lacing mode||Slot by slot/Interval slot/Fancy slot|
|Power supply||380V/50/60Hz 3.5Kw|
This machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
Main spindle adopts servo control system. The rotation speed can be set.
Two needles driven by servo system lace upper and lower coil simultaneously.
Machine can automatically feed thread and cut thread. There is no need to tie a knot.
Tooling change is fast and convenient. Stator stack length range is 50-130mm.
Lacing tension can be set,
Production capacity ≤1s/slot.
Should be no copper wire snap and wire enamel broken.
Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
his machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
(3) Machine Main Characteristic
1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.
2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.
3. This machine is suitable for the big stator with high winding over-hang.
4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.
The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
