|Name:||Compression Motor Auto Stator Coil Lacing Machine With PLC And Touch Screen||Stator O.D.:||≤160mm|
|Stack Height:||10-100mm||Power Supply:||220V/50/60Hz 2Kw|
|Diameter Of Stator:||80mm-160mm||Color:||Orange/White/Blue|
|Customized Service:||Available||After-Sales Service:||Overseas Service Center Available|
induction motor winding machine,
automatic stator winding machine

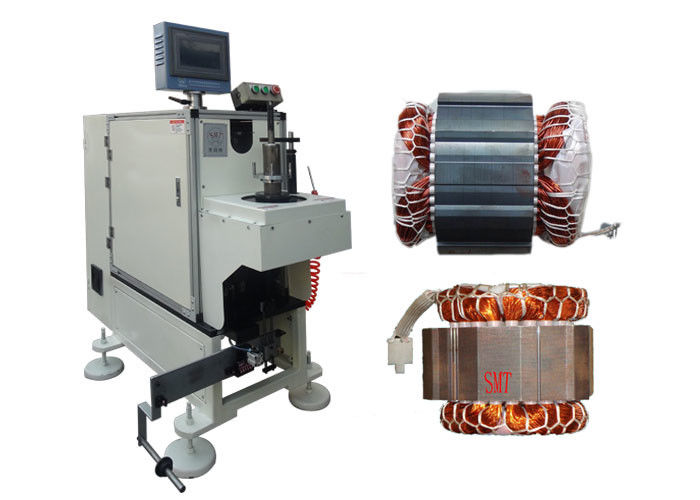

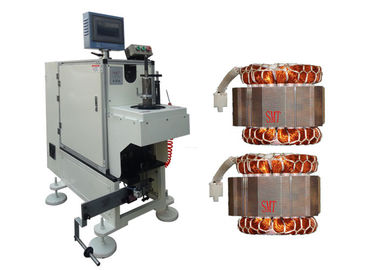

Compression Coil Wire Binding Machine With PLC and touch Screen SMT - DB100
Loading stator vertically; equipped with pressing, automatic feeding, automatic cutting device, etc.; overhang winding adopts twin needle lacing by servo system simultaneously; needle indexing, hooking and stator indexing are controlled by servo system; spindle adopts frequency speed control; slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface; characterized by compact appearance, fast speed .low noise; simple operation and easy tooling change.
(1) Main Technical Information
|Height of coil||≤40mm|
|Lacing Mode||Slot by slot/interval slot/Fancy lacing|
|Lacing Speed||about 0.7s/s|
|Power Supply||220V/50/60Hz 2Kw|
This machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
Main spindle adopts servo control system. The rotation speed can be set.
Two needles driven by servo system lace upper and lower coil simultaneously.
Machine can automatically feed thread and cut thread. There is no need to tie a knot.
Tooling change is fast and convenient. Stator stack length range is 50-130mm.
Lacing tension can be set,
Production capacity ≤1s/slot.
Should be no copper wire snap and wire enamel broken.
Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
his machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
(3) Machine Main Characteristic
1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.
2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.
3. This machine is suitable for the big stator with high winding over-hang.
4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.
