|Place of Origin:||China|
|Certification:||ISO / SGS Audit|
|Model Number:||SMT - DB160|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wooden Box Packaging|
|Delivery Time:||46 - 88 days|
|Payment Terms:||T/T , L/C|
|Supply Ability:||1pcs / 46 - 83 days|
|Name:||Stator Coil Lacing Coils Binding Machine For Pump Compressor Induction Motor||Power Supply:||380V/50/60Hz 3.5Kw|
|Slot Numbe:||8~48 Slots||Package:||1 Ply-Wooden Case|
|Color:||White/Orange||Main Motor Power:||3.5 Kw|
|Tack Time:||0.4-0.5s/ Pin|
induction motor winding machine,
automatic stator winding machine

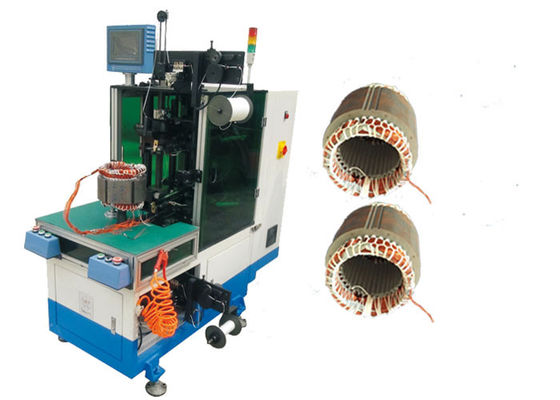

Stator Coil Lacing Coils Binding Machine For Pump Compressor Induction Motor SMT - BZ190
We have Overseas Service Center.
Variety of application, easy operation.
We could customize machine for our customer as per their requirement.
The operation and tooling change process is easy.
Machine is controlled by PLC. All the parameter can be set in the touch screen.
It is suitable for stators with different model number and dimension.
(1) Main Technical Information
|Stator O.D||≤ 170mm|
|Height of Overhang||≤50mm|
|Laccing mode||Slot by slot / interval slot/Fancy lacing|
|Power supply||380v/50/60Hz 3.5kw|
|Machine weight||About 900kg|
|Machine dimension (LxWxH)||1500x 650x 1800mm|
This machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
Main spindle adopts servo control system. The rotation speed can be set.
Two needles driven by servo system lace upper and lower coil simultaneously.
Machine can automatically feed thread and cut thread. There is no need to tie a knot.
Tooling change is fast and convenient. Stator stack length range is 50-130mm.
Lacing tension can be set,
Production capacity ≤1s/slot.
Should be no copper wire snap and wire enamel broken.
Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
his machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
(3) Machine Main Characteristic
1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.
2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.
3. This machine is suitable for the big stator with high winding over-hang.
4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.
