Stator Lacing Machines Manufacture Electric Motors of lacing Stator End Coils

Stator Lacing Machines Manufacture Electric Motors of lacing Stator End Coils

  • High Light

    Coil Wire Binding Machine


    automatic stator winding machine

  • Name
    Stator Lacing Machines To Manufacture Electric Motors
  • Stack Height
    100 - 260mm
  • Power Supply
    380v/50/60Hz 0.75kw
  • Automatic Grade
  • Customized
  • Working Type
  • Lacing Power
    Servo Motor
  • Speed
  • Place of Origin
  • Brand Name
  • Certification
    ISO / SGS Audit
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
  • Packaging Details
    Plywood Box or follow your requirement.
  • Delivery Time
    45 - 83 days
  • Payment Terms
    T/T , L/C
  • Supply Ability
    1pcs / 45 - 82 days

Stator Lacing Machines Manufacture Electric Motors of lacing Stator End Coils

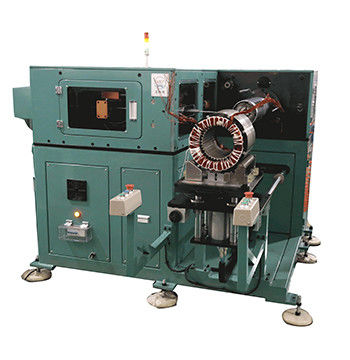

Stator Lacing Machines To Manufacture Electric Motors of Lacing Stator End Coils - DW350



This stator winding lacing machine is suitable for stator coil to do automatic lacing.Each machine is PLC controlled with an inverter drive and can be fully programmed to suit different stator slot configurations. The lacing type, like slot by slot lacing, intercal lacing, and fancy lacing could be achieved by setting in human-machine interface. The wokring process, such as single-needle and single-side automatic lacing; needle transpositioning, hooking, are all controlled by servo system. Stator is loaded on this coil lacing machine vertically.
This machine is suitable for stator used in induction motor industry. This lacing manchine is especially applied to multi sizes, low output or more lead stator winding lacing.


(1) Main Technical Description


Model DW350
Stator I.D. 120-250mm
Stator O.D. 210-350mm
Core length 120-300mm
Overhang coils height 20-85mm
Slot Number 24-60
Lacing Speed about 0.7s/s
Power Supply 380V/50/60Hz 7Kw
Dimension (L)1550*(W)1350*(H)1500mm
MOQ 1 set Single Side Lacing Machine


(2) Advantage


This machine adopts servo driven system, CNC control design and HIM program.

The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

Main spindle adopts servo control system. The rotation speed can be set.

Two needles driven by servo system lace upper and lower coil simultaneously.

Machine can automatically feed thread and cut thread. There is no need to tie a knot.

Tooling change is fast and convenient. Stator stack length range is 50-130mm.

Lacing tension can be set,

Production capacity ≤1s/slot.

Should be no copper wire snap and wire enamel broken.

Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

his machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.

(3) Machine Main Characteristic


1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

3. This machine is suitable for the big stator with high winding over-hang.

4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.


(4) OEM/ODM


The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Stator Lacing Machines Manufacture Electric Motors of lacing Stator End Coils 0

(6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
