|Name:||Automatic Stator Coil Winding Machine AC / DC Electrical Series Motor||Wire Speed:||≤3000r/min|
|Warranty:||12 Months||Winding Head:||1-2pcs|
|Max Stack Height:||≤70mm||Application:||Stator Production|
ceiling fan coil winding machine,
ceiling fan winding machine

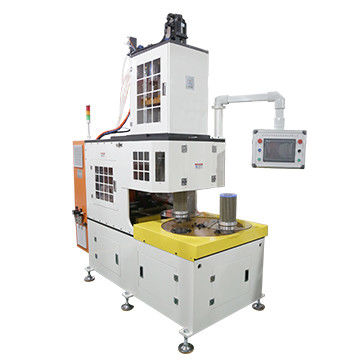

Coil Needle Stator Winding Machine PLC Displayer 0.2~1.0 MM Wire Diameter
This machine mainly used for the 2 poles stator’s winding. One stator will be winded in each cycle, greatly improving production efficiency, automatic loading and removing mould, to reduce artificial labor intensity. Winding process can realize tapping(5 times), clamping functions, the stroke and pivot angle of fly fork lever stroke can be adjusted within a certain range according to need. Total aluminum alloy(anodic oxidation treatment) frame with imported acrylic protection. Electric is mainly controlled by PLC, displayer, and frequency converter. Safe and reliable setting, display.
(1) Main Technical Data
|Power supply||380V/50/60Hz 8Kw|
|MOQ||1set Automatic Coil Winding Machine|
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
