Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal )

Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal )

  • High Light

    Coil Insertion Machine

    ,

    Stator Winding Inserting Machine

    ,

    Horizontal Stator Coil Inserting Machine

  • Name
    Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal )
  • Stator I.D.
    20-100mm
  • Stator O.D.
    ≤160mm
  • Tooling Travel
    3-10mm
  • Working Station
    One
  • Appropriate Wire
    Copper/Alum Wire
  • Color
    White
  • Slot Number Range
    8~48 Slot
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-k90
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With Plastic Bag.
  • Delivery Time
    31-65 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 31-65 days

Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal )

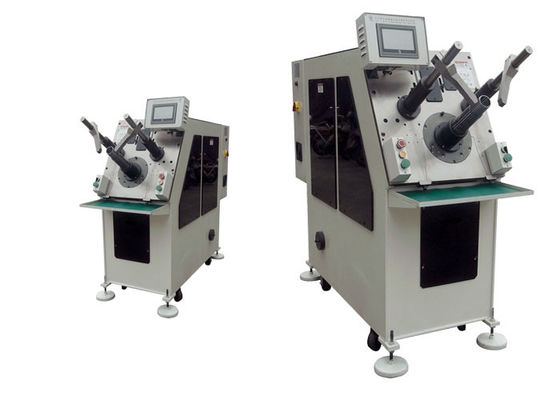

Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal ) SMT - K90





This type of stator coil inserting machine can insert coil and wedge or coil and wedge in the mid of slot into stator at a time; wedge feeding is to be done bt stepping motor,and coil and wedge inserting is by servo system; different parameter could be set in human-machine interface; the speed and feeding mode is acquirable according to different slot filling rate and different kind of wire;Every machine we supply gives the option to program for automatic slot wedge making. Different size stator production can be achieved by changing tooling.



(1) Main Technical Data



Model SMT-K900 SMT-FDK90
Stator I.D Φ20~Φ100mm Φ20~Φ100mm
Stator O.D ≤Φ160mm Φ30~Φ160mm
Stack height ≤120mm 10~110mm
Tooling travel ≤70mmn --------------------------
Appropriate wire copper or aluminium wire copper or aluminium wire
Slot number range 8~48 slot 8~48 slot
Power supply 380V/50/60Hz 3Kw 380V/50/60Hz 3Kw
Weight ≈850Kg ≈650Kg
Dimension (L)1800×(W)650×(H)1700mm (L)1800×(W)650×(H)1700mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(3) Machine Main Characteristic



It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

The machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system, and wedge insertion by variable frequency motor.
It is controlled by HMI, and machine can diagnose breakdown automatically.
This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
The wedge feeding is by stepping motor,feeding length, cutting, forming, inserting slot number could be set.
Both copper wire and aluminium wire are applicable.
Production capacity ≤25s/set (exclude theman-hours for auxiliary work)
Primary qualification rate for copper wire≥98.5%, after rework, the rate ≥99.5%

Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal ) 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
