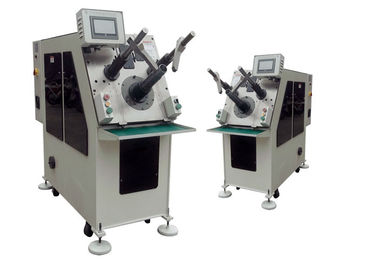

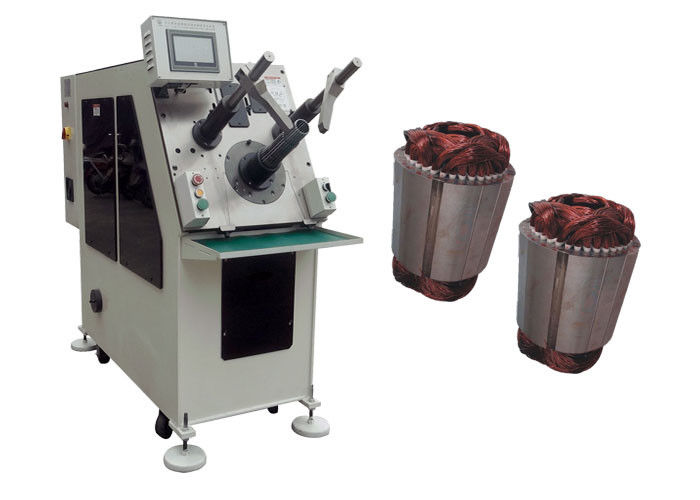

Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal ) SMT - K90

Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal ) SMT - K90

  • Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal )  SMT - K90
  • Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal )  SMT - K90
Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal )  SMT - K90
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-k90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box With Plastic Bag.
Delivery Time: 34-74 days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 34-68 days
Contact Now
Detailed Product Description
Name: Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal ) Stator I.D.: 20-100mm
Stator O.D.: ≤160mm Tooling Travel: 3-10mm
Appropriate Wire: Copper/Alum Wire Color: White
Slot Number Range: 8~48 Slot Max Stator O.D: ≤160mm
High Light:

Wedge Inserting Machine


Stator Winding Inserting Machine


Horizontal Coil Inserting Machine

Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal ) SMT - K90
(1) Information needed for stator winding inserting machine inquiry:

It will be better if customer could send us detailed drawing including below information.
1. Stator lamination drawing
2. Stator stack drawing
3. Wire connection drawing
4. Stator application
5. Required productivity

(2) Application
The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.
We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.
(3) Machine Main Characteristic
It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.
(4) OEM/ODM
Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
The machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system, and wedge insertion by variable frequency motor.
It is controlled by HMI, and machine can diagnose breakdown automatically.
This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
The wedge feeding is by stepping motor,feeding length, cutting, forming, inserting slot number could be set.
Both copper wire and aluminium wire are applicable.
Production capacity ≤25s/set (exclude theman-hours for auxiliary work)
Primary qualification rate for copper wire≥98.5%, after rework, the rate ≥99.5%
 Motor Stator Slot Winding / Coil Inserting Machine ( Servo / Horizontal )  SMT - K90 0
