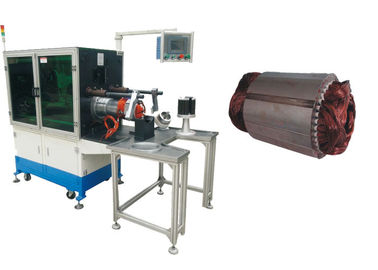

Coil and Wedge Motor Winding Equipment Automatic Servo System Stator

Coil and Wedge Motor Winding Equipment Automatic Servo System Stator

  • Coil and Wedge Motor Winding Equipment  Automatic Servo System Stator
Coil and Wedge Motor Winding Equipment  Automatic Servo System Stator
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-KW300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box With Sealing
Delivery Time: 42-68days
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 42-68days
Contact Now
Detailed Product Description
Name: Automatic Servo System Stator Coil And Wedge Inserting Machine Stator I.D.: 110-210mm
Stator O.D.: 175-300mm Height Of Edge Folded: 3-10mm
Power Supply: 380V/50/60Hz 3Kw Appropriate Wire: 0.2~1.2mm
HS Code: 8479819000 System: Servo System
High Light:

Wedge Inserting Machine


Stator Winding Inserting Machine


Wedge Motor Winding Equipment

Coil and Wedge Motor Winding Equipment Automatic Servo System Stator



1. Suitable for inserting coil and wedge into stator slot by sero system .
2. It can insert the coil and wedge or coil a nd wedge in the mid of slot stator at a time.
3 .Wedge fedding it to be done by stepping motr and coil and wedge inserting is by servo system .
4. Different paramenter could be set in human -machine interface .
5. The speed and feeding mode is acquirable according to different slot filling rate and different kind of wire.
6. Different size stator production can be achieved by changing tooling


(1) Main Technical Features


Model KW300
Stator I.D. 110-210mm
Stator O.D. 175-300mm
Stack Height ≤250mm
Tooling Travel ≤70mm
Appropriate Wire Diameter 0.2-1.2mm
Slot number range 8-48slot
Power Supply 380V/50/60Hz 4Kw
MOQ 1 set Motor Wire Inserting Machine
Machine dimension (L)1000*(W)2000*(H)2000mm


(2) Application


The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

(3) Our Service


Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


(6) About Us


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
