SMT Fan Motor Stator Coil Slot Winding Lacing Machine PLC programming

SMT Fan Motor Stator Coil Slot Winding Lacing Machine PLC programming

  • SMT Fan Motor Stator Coil Slot Winding Lacing Machine PLC programming
SMT Fan Motor Stator Coil Slot Winding Lacing Machine PLC programming
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT - DB100
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Coil Head Lacing Machine is packaged with plywood box, its dimension depends on whole size of machines and other parts.
Delivery Time: 30-40 days after advance payment
Payment Terms: T/T , L/C
Supply Ability: 1 Set per 30-40 days
Contact Now
Detailed Product Description
Machine: Fan Motor Stator Coil Slot Winding Lacing Machine Type: DB100
Stator I.D. Min: D35mm Stator I.D. Max: D110mm
Stack Height Range: 10-100mm Coil Height: ≤Φ40mm
Weight: ≈600kg
High Light:

induction motor winding machine


automatic stator winding machine

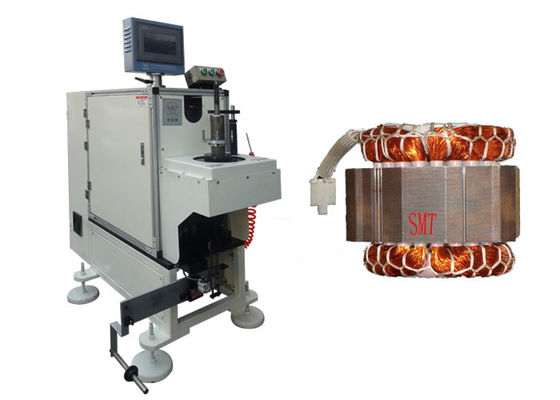

Stator End Turns Head Lacing Machine with Vertical Structure SMT - DB100



This lacing machine is consist of machine body, needle, nozzle rotating part, needle fore and back movement, nozzle swing part, needle up and down movement part, stator indexing part, thread feeding,thread cutting part. It has a mechanical cam operated drive system to keep a perfect phasing of the needle movement during the lacing cycle. Machine is controlled by PLC, different stator slot configurations can be set in the touch screen, like the lacing type, like slot by slot lacing, intercal lacing, and fancy lacing. During machine operation, operator only need to load and unload the stators.


(1) Main Technical Parameters




Stack height


Stator I.D

Φ35~ Φ110mm

Stator O.D


Height of coil


Lacing mode

Slot by slot/Interval slot/Fancy slot

Lacing speed


Power supply

380V/50/60Hz 2Kw






(2) Brief Introduction of Machine


Stator Coil Head Lacing Macine is used for fixing the coil head to avoid being scattered after forming.

This kind of lacing machine, Stator Head Lacing Machine, is with only one lacing needle and lacing stator head one by one side, which is simpler than other lacing machines. It's mainly suitable for smaller stators production and stator production with small output.

It also has higher qualification rate: primary qualification rate ≥98.5%, after rework, the rate ≥99.5%.

Operators need to stand when operating and start by both hands to ensure safety.


(3) Main Characteristics


1. Loading stator vertically;

2. PLC programming;

3. Single-needle and single-side automatic lacing;

4. Needle transposition and hooking are controlled by servo system;

5. Spindle adopts frequency speed control;

6. Slot by slot lacing, interval lacing, and fancy lacing could be achieved by setting in human-machine interface;

7. Especially apply to multi sizes, low output or more lead stator winding lacing.

With single needle, it is suitable for production of different stators with small output.


(4) OEM/ODM


The company mainly produces machinery and equipment for motor production. Our products are mainly automatic winding machine, slot insulation machine, coil head lacing machine, coil inserting machine, forming machine and insulaiton forming machine, etc. Products and manufacturing are as customer's request. During warranty period, 1 year after delivery, our engineers will provide technical support for free. Besides, overseas after-service is available.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

SMT Fan Motor Stator Coil Slot Winding Lacing Machine PLC programming 0


(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of high-tech key enterprises which is specialize in R&D, manufacturing and selling equipments for motor production in China as well as exporting to the world. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
