AC / Industrial Induction Motors Coil Inserting Machine , Coil Insertion Machine

AC / Industrial Induction Motors Coil Inserting Machine , Coil Insertion Machine

  • High Light

    Wedge Inserting Machine

    ,

    Coil Insertion Machine

    ,

    AC Induction Coil Insertion Machine

  • Name
    AC / Industrial Induction Motors Stator Winding Inserting Machine For Sale
  • Model
    SMT-QX10
  • Stator I.D Max
    D210mm
  • Stator I.D Min
    D110mm
  • Tooling Travel
    At Most: 90mm
  • Structure
    White
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / BV / SGS
  • Model Number
    QX10
  • Minimum Order Quantity
    1 Set
  • Price
    Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
  • Packaging Details
    Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
  • Delivery Time
    45-55 days after advance payment
  • Supply Ability
    15 Set/Sets per Month

AC / Industrial Induction Motors Coil Inserting Machine , Coil Insertion Machine

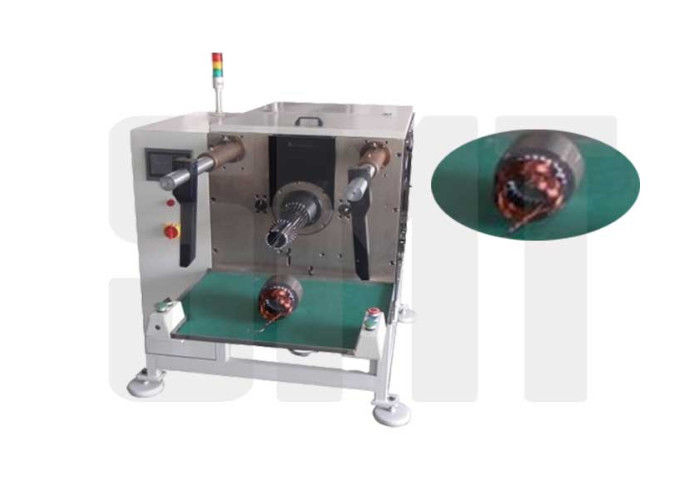

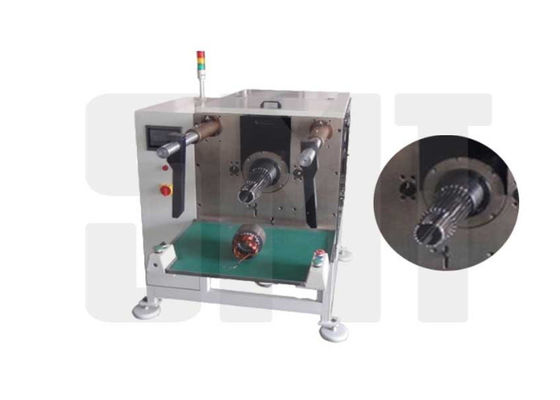

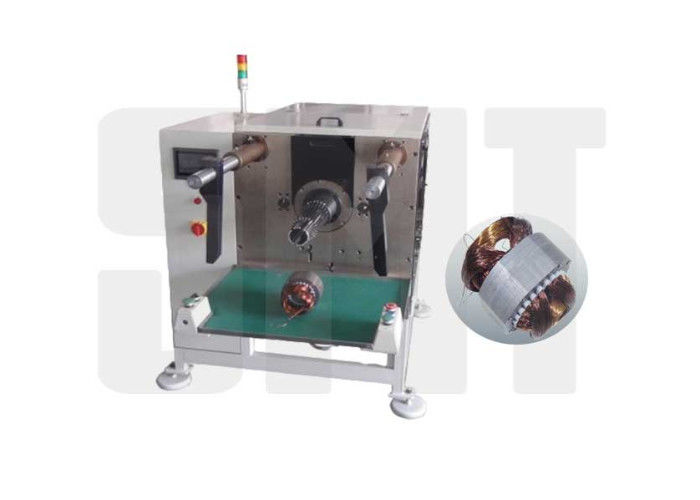

AC / Industrial Induction Motors Stator Winding Inserting Machine for Sale SMT-QX10





Brief Instruction of Machine



Machine "AC / Industrial Induction Motors Stator Winding Inserting Machine for Sale" is used for inserting electric coils and wedge insulation to stator slots automatically at one time. After finish coils winding in winding machine, the coils will be in transfer cup orderly. Operators just put the transfer cup with coils into the inserting tooling and start the inserting machine, which will form, cut and insert wedge paper together with coils automatically.

Operators need to stand when operating.



It's euqipped with modular tooling so it's very easy to change the tooling when change product model. The changeover time is less than 10 minutes.



(1) Technical Parameters



Model

SMT-QX10

Stator I.D

Φ110~Φ210mm

Stator O.D

≤Φ260mm

Stack height

≤250mm

Tooling travel

≤90mmn

Compatible wire

Cu / AL

Slot number range

24~48 slot

Power supply

380V/50/60Hz 6.5Kw

Weight

≈1150Kg

Dimension

(L)2380×(W)1280×(H)1700mm









(3) Main Specifications



1. Tooling changeover time is less than 10 minutes;

2. It can insert the coil and wedge into stator slot automatically at a time;

3. Paper feeding, coil and wedge inserting are driven by servo motors;

4. Different parameters could be set in human-machine interface;

5. The speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire;

6. Different sizes stator production can be done by changing tooling;

7. Especially apply to micro induction motor such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.



(4) Services



We focus on developing and producing machines for different induction motors production, such as Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be for free.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Service



With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.

AC / Industrial Induction Motors Coil Inserting Machine , Coil Insertion Machine 0



(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a Chinese manufacturer, which is specialize in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
