|Place of Origin:||China|
|Certification:||ISO / SGS Audit|
|Model Number:||SMT - BZ190|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wooden Box Packaging|
|Delivery Time:||28 - 65 days|
|Supply Ability:||1pcs / 28 - 55 days|
|Name:||Motor Stator Coil Double-Sides Lacing Machine Motor Production Machine||Model:||SMT-BZ190|
|Stator I.D.:||Φ110~ Φ210mm||Stator O.D.:||≤Φ300mm|
|Stack Height:||≤50mm||Power Supply:||380V/50/60Hz 3.5Kw|
automatic stator winding machine,
induction motor winding machine

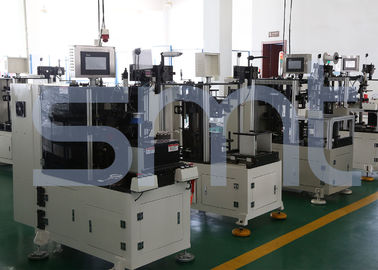

Automatic Servo Double Sides Motor Stator Coil Turns Lacing Machine SMT - BZ190
(1) Main Technical Information
|Stator O.D||≤ 300mm|
|Height of Overhang||≤50mm|
|Laccing mode||Slot by slot / interval slot/Fancy lacing|
|Power supply||380v/50/60Hz 3.5kw|
|Machine weight||About 900kg|
|Machine dimension (LxWxH)||1500x 650x 1800mm|
This machine adopts servo driven system, CNC control design and HIM program.
The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
Main spindle adopts servo control system. The rotation speed can be set.
Two needles driven by servo system lace upper and lower coil simultaneously.
Machine can automatically feed thread and cut thread. There is no need to tie a knot.
Tooling change is fast and convenient. Stator stack length range is 50-130mm.
Lacing tension can be set,
Production capacity ≤1s/slot.
Should be no copper wire snap and wire enamel broken.
Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
his machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
(3) Machine Main Characteristic
1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.
2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.
3. This machine is suitable for the big stator with high winding over-hang.
4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.
The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
(6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
