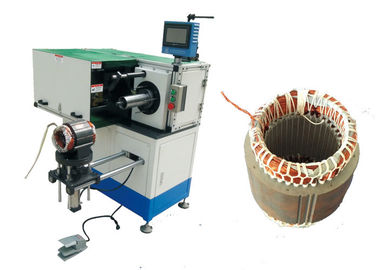

Horizontal Single Side Stator Coil Lacing Machine for High Winding Overhang Big Electric Motor

Horizontal Single Side Stator Coil Lacing Machine for High Winding Overhang Big Electric Motor

  • Horizontal Single Side Stator Coil Lacing Machine for High Winding Overhang Big Electric Motor
Horizontal Single Side Stator Coil Lacing Machine for High Winding Overhang Big Electric Motor
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-DW300
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box or follow your requirement.
Delivery Time: 30 - 79 days
Payment Terms: T/T
Supply Ability: 1pcs / 27 - 77 days
Contact Now
Detailed Product Description
Name: Horizontal Motor Stator Single Side Coil Turns Lacing Machine Stator I.D.: 110-210mm
Stator O.D.: ≤Φ301mm Stack Height: 100 - 260mm
Power Supply: 380v/50/60Hz 0.75kw Overseas After-Service: Engineers Are Available To Overseas
Condition: New Function: Coil Lacing
High Light:

automatic stator winding machine

,

induction motor winding machine

Horizontal Single Side stator coil Lacing Machine for high winding overhang big electric motor


(1) Introduction and features

The coil lacing machine can automatically ties off the coil ends of motor stators.

That can reduce the labor involved in handling wire ends and increase production efficiency.

Servo indexing system,

PLC control;

human-machine interface;

Horizontal structure;

The tooling is movable, and convenient for stator fast loading and unloading.

Different lacing methods are programmable, such as slot-by-slot lacing, interval lacing and fancy lacing.

No broken for the lacing thread, no damage for the wire enamel;

Stand operation, single "start" button;


(2) Application

The automatic coil lacing machine is suitable for medium and big motor stator with high winding over-hang.

(3) Technical Parameters

Product name: Horizontal big electric motor stator coil lacing machine
Stator OD: 200-320mm;
Stator ID: 90-250mm;
Stator stack length: 125-300mm;
Overhang height: 20-65mm
Slot NO.: 8-48 slots (Can be set lacing slot by slot or interval slot);
Lacing method : Single side lacing;
Efficiency: 5sec/slot;
Once lacing qualification ratio ≥99.5%;
Voltage: 220V 50/60HZ
Power: 4.5KW
Weight: 800KG
Dimension: 1500*1200*1500mm






Horizontal Single Side Stator Coil Lacing Machine for High Winding Overhang Big Electric Motor 0
