Automatic Efficient Braiding Stator Lacing Machine For Lacing / Fixing Stator Winding Ends

Automatic Efficient Braiding Stator Lacing Machine For Lacing / Fixing Stator Winding Ends

  • Automatic Efficient Braiding Stator Lacing Machine For Lacing / Fixing Stator Winding Ends
Automatic Efficient Braiding Stator Lacing Machine For Lacing / Fixing Stator Winding Ends
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / BV / SGS
Model Number: SMT - SBZ160
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD; Total price will be negotiated according to stator details
Packaging Details: Plastic wrapping film, vacuum package and plywood cases.
Delivery Time: 45 workdays after receiving the advance payment
Payment Terms: T/T , L/C
Supply Ability: 14 sets per Month
Contact Now
Detailed Product Description
Name: Automatic Efficient Braiding Lace Machine For Lacing/Fixing Stator Winding Ends Model: SBZ160
Controller: CNC Servo Control: Inovance
Air Pressure: Max: 1 Mpa Power Supply: 380V/50HZ 4Kw
Color: Standard White MOQ: One Set
High Light:

automatic stator winding machine

,

induction motor winding machine

Automatic Working up and down low noise Stator Wire Lacing Machine for electric motor


(1) Application of The stator lacing machine

This Stator Wire Lacing Machine adopts two hands simultaneously start button to ensure safety.
And the lacing machine is suitable for air fan motor, washing machine motor, compression motor, conditioner motor, generator motor and pump motor etc,
The stator coil lacing machine is widely used in people's lives,although many people do not know it

(2) Technical data of The stator lacing machine

Product name stator wire lacing machine
Stator ID 40~100mm
Stator OD Max. 160mm
Stack length 30~160mm
Over-hang height Max. 45mm
Lacing mode slot by slot/ interval slot/ fancy lacing
Lacing speed 0.5s/s
Power 380V/50/60HZ 3.5KW
Machine weight about 600kg
Machine dimension L1500*W650*H1700mm


(3) Machine main function and characteristics of The stator lacing machine

  • This stator wire lacing machine adopts safety grating protection system. Operator need to stand when operating.
  • The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.
  • This stator coil winder lacing machine adopts servo driven system, CNC control design and HIM program.
  • Main spindle adopts servo control system. The rotation speed can be set.
  • Two needles driven by servo system lace upper and lower coil simultaneously.
  • Machine can automatically feed thread and cut thread. There is no need to tie a knot.
  • Tooling change is fast and convenient. Stator stack length range is 50-130mm.
  • Production capacity ≤1s/slot.
  • The Lacing tension can be set easily.
  • Should be no copper wire snap and wire enamel broken.
  • Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%
  • The lacing Machine adopts two hands simultaneously start button to ensure safety, it is very Convenience and hight efficency!

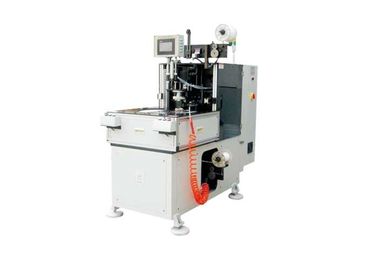

(4) Picture show
