Horizontal Motor Automatic Stator Coil Winding Machine For Fan Washing Machine Motor

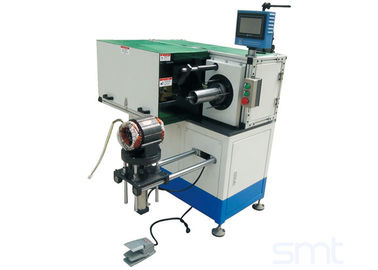

Induction Motor Stator Coil Horizontal Single Side Lacing Machine SMT-DW300


This machine is used to bind the engine stator coil, applicable for various wires binding methods, and equipped with tension controller to adjust the tightness degree of binding wires.


(1) Main Technical Information


Model DW300
Stack height 100 - 260mm
Stator I.D 110-210mm
Stator O.D ≤ 301mm
Height of Overhang ≤50mm
Laccing mode Slot by slot / interval slot/Fancy lacing
Lacing speed 8-48 slot
Power supply 380v/50/60Hz 0.75kw
Machine weight About 450kg
Machine dimension (LxWxH) 1160x 1200x1500mm


(2) Advantage


1) The whole mechanical structure, durable, and it is very convenient to repair and replace different engine stators.
2) Either full-slot binding or electrical insulation slot binding can be set.
3) High binding speed, which can reach up to 220 RPMPositioning mode: Either internal positioning or external positioning is available, with additional clamping device.

(3) Machine Main Characteristic


1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

3. This machine is suitable for the big stator with high winding over-hang.

4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.


(4) OEM/ODM


The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
