Automatic Single Phase Motor Stator Lacing Machine CNC Controller White Color

Automatic Single Phase Motor Stator Lacing Machine CNC Controller White Color

  • Automatic Single Phase Motor Stator Lacing Machine CNC Controller White Color
Automatic Single Phase Motor Stator Lacing Machine CNC Controller White Color
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / BV / SGS
Model Number: SMT - SBZ160
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: USD; Total price will be negotiated according to stator details
Packaging Details: Plastic wrapping film, vacuum package and plywood cases.
Delivery Time: 45 workdays after receiving the advance payment
Payment Terms: T/T , L/C
Supply Ability: 14 sets per Month
Contact Now
Detailed Product Description
Name: Automatic Single Phase Motor Stator Winding Lacing Machine Motor Model: SBZ160
Controller: CNC Servo Control: Inovance
Air Pressure: Max: 1 Mpa Power Supply: 380V/50HZ 4Kw
Color: Standard White MOQ: One Set
High Light:

Coil Wire Binding Machine

,

induction motor winding machine

Automatic Single Phase Motor Stator Winding Lacing Machine Motor



This machine is used to bind the engine stator coil, applicable for various wires binding methods, and equipped with tension controller to adjust the tightness degree of binding wires.



(1) Main Technical Information



Model

SBZ160

Stack Height

15-120mm

Stator I.D.

25-100mm

Stator O.D.

≤Φ160mm

Height of coil

≤40mm

Lacing Mode

Slot by slot/interval slot/Fancy lacing

Lacing Speed

about 0.45s/s

Power Supply

380V/50/60Hz 3.5Kw

Weight

1500kgs

Machine dimension

(L)1950*(W)1050*(H)2050mm



(2) Brief Instruction of Machine



Machine "Automatic Efficient Braiding Lace Machine for Lacing/Fixing Stator Winding Ends" is applied in lacing induction motor stator coil ends automatically. It can save labors largely compared with manual. And It can set different lacing patterns, which is more flexible for using and secure.



(3) Main Specifications



1. Auto structure of pushing out stators can be equipped accordingly;

2. Adopting two needles to lace the stator winding ends automatically;

3. Adopting CNC control system to control the servo motors of four spindles;

4. Needle transposition and stator indexing are driven by servo motor;

5. The separated type tooling design and changeover time: ≤15mins;;

6. can detect fault location, with the function of fault diagnosis;

7. Main spindle is driven by servo motor; the speed is adjustable;

8. Lacing mode: lacing slot by slot, interval slot, skip slot or fancy lacing;

9. Equipped with automatic feeding, cutting and mechanical cord tension system;


(4) Services

We're devoted in R&D and manufacturing equipment for induction motor production, such as Winding machine, Coil Inserting Machine, Lacing Machine and so on.
OUr machines are designed according to customer requirements. For example, machine facade, allocation and mechanism structure,etc. can be specilized if customer has special request. Besides, we can help to arrange the layout of machines of customer site when necessary.
Our engineers will provide customer with technical support. Within one year guarantee period, some technical support and some parts can be supplied for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



(5) Production Line Service

SMT team can provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.

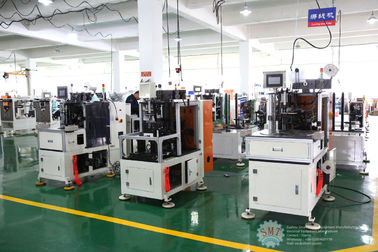

More videos and fancy pictures are waiting for you here:
