Induction Motor Stator Lacing Machine , Coil Double Sides Winding Lacing Machine

Induction Motor Stator Lacing Machine , Coil Double Sides Winding Lacing Machine

    • Induction Motor Stator Lacing Machine , Coil Double Sides Winding Lacing Machine
    • Induction Motor Stator Lacing Machine , Coil Double Sides Winding Lacing Machine
  • Induction Motor Stator Lacing Machine , Coil Double Sides Winding Lacing Machine

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO / SGS Audit
    Model Number: SMT - SBZ160

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box With a Sealing Bag.
    Delivery Time: 42 - 78 days
    Payment Terms: T/T , L/C
    Supply Ability: 1pcs / 42 - 76 days
    Contact Now
    Detailed Product Description
    Name: Pump Motor Automatic Stator Winding Lacing Machine Model: SMT-SBZ160
    Stack Height: 17~100mm Power Supply: 380V/50/60Hz 3.5Kw
    Air Pressure: 0.4MPa Color: White/Blue
    Customized: Yes Productivity: MAX.2000 Pcs/8 Hours For 24 Slots Stator
    High Light:

    Coil Wire Binding Machine


    induction motor winding machine

    Induction Motor Stator Coil Double Sides Lacing Machine SMT - SBZ160


    Pump Motor Automatic Stator Winding Lacing Machine / Motor Stator Coil Lacing Machine

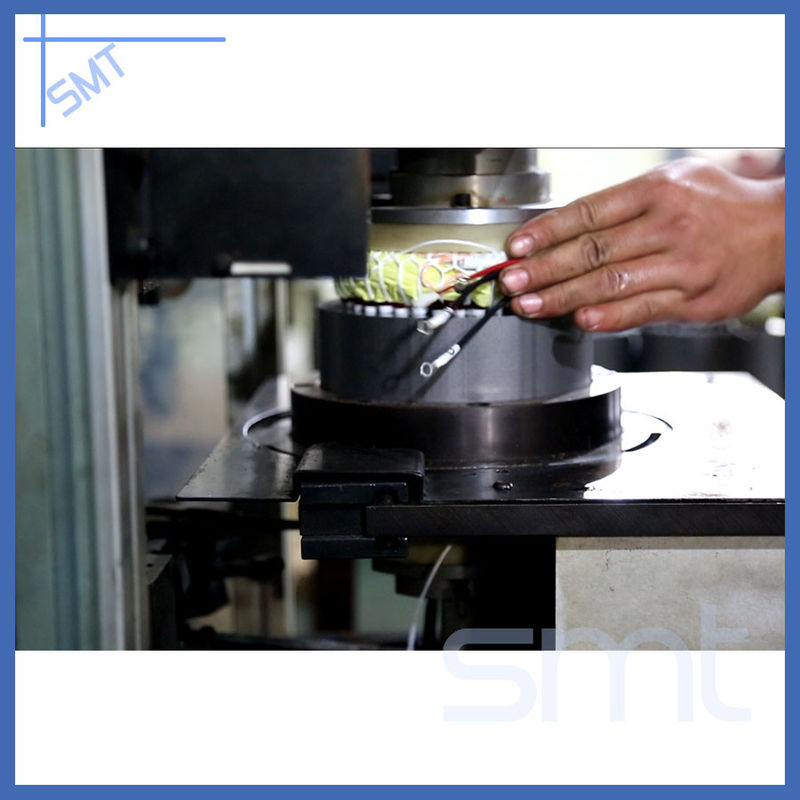

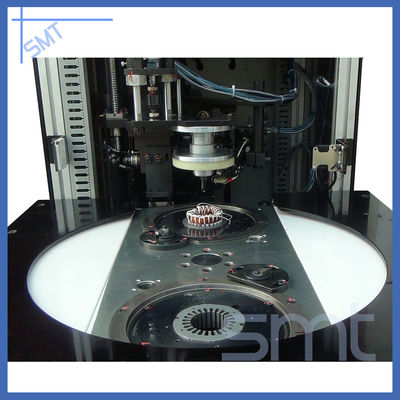

    This stator winding lacing machine is suitable for stator coil to do automatic lacing.Each machine is PLC controlled with an inverter drive and can be fully programmed to suit different stator slot configurations. The lacing type, like slot by slot lacing, intercal lacing, and fancy lacing could be achieved by setting in human-machine interface. The wokring process, such as single-needle and single-side automatic lacing; needle transpositioning, hooking, are all controlled by servo system. Stator is loaded on this coil lacing machine vertically.


    (1) Main Technical Information


    Model SMT-SBZ160
    Stack height 17~100mm
    Stator I.D Φ25~ Φ100mm
    Stator O.D ≤Φ160mm
    Height of overhang ≤40mm
    Lacing mode Slot by slot/Interval slot/Fancy slot
    Lacing speed ≈0.45s/s
    Power supply 380V/50/60Hz 3.5Kw
    Weight ≈800Kg
    Dimension (L)1500×(W)650×(H)1700mm


    (2) Advantage


    This machine adopts servo driven system, CNC control design and HIM program.

    The indexing is driven by servo system. Different lacing mode could be set such as slot lacing, interval lacing, and fancy lacing.

    Main spindle adopts servo control system. The rotation speed can be set.

    Two needles driven by servo system lace upper and lower coil simultaneously.

    Machine can automatically feed thread and cut thread. There is no need to tie a knot.

    Tooling change is fast and convenient. Stator stack length range is 50-130mm.

    Lacing tension can be set,

    Production capacity ≤1s/slot.

    Should be no copper wire snap and wire enamel broken.

    Primary qualification rate ≥98.5%, after rework, the rate ≥99.5%

    his machine adopts safety grating protection system. Operator need to stand when operating.

    Machine adopts two hands simultaneously start button to ensure safety.

    (3) Machine Main Characteristic


    1. Adapting industrial PLC, human-computer interface and horizontal frame-structure design, the servo system machine accurately controls the lacing action.

    2. Different lacing methods such as slot-by-slot lacing, interval lacing and fancy lacing are programmable.

    3. This machine is suitable for the big stator with high winding over-hang.

    4. The tooling is movable and convenient for stator fast loading and unloading, hence to reduce the labor strength effectively.


    (4) OEM/ODM


    The company mainly produces motor machinery and equipment. Our products mainly include automatic winding machine, lacing machine, inserting machine, shaping machine, forming machine etc. We adopt overseas advanced technology and processes and corporate willpower to improve electromechanical fully automated factory production capacity, with the most stable quality and customer service to get the biggest trust.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.


    (5) Production Line Profile


    With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


    (6) About Suzhou Smart motor Equipment Manufacturing Co.,Ltd


    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments.
