Copper Wire Coil Stator Winding Inserting Machine For Pump Motor Winding And Inserting

Copper Wire Coil Stator Winding Inserting Machine For Pump Motor Winding And Inserting

  • High Light

    Wedge Inserting Machine


    Coil Insertion Machine


    Copper Wire Stator Winding Inserting Machine

  • Name
    Copper Wire Coil Insertion Machine For Long Pump Motor Winding Inserting
  • Model
  • Stator O.D
  • Stack Height
  • Applicative Wire
    PVC / Cu Wires
  • Structure
  • Place of Origin
  • Brand Name
  • Certification
    SGS / ISO 9001 / BV
  • Model Number
  • Minimum Order Quantity
    1 Set
  • Price
    Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later.
  • Packaging Details
    Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size.
  • Delivery Time
    50 workdays after advance payment
  • Supply Ability
    About 15 Set/Sets per 40 days

Copper Wire Coil Stator Winding Inserting Machine For Pump Motor Winding And Inserting

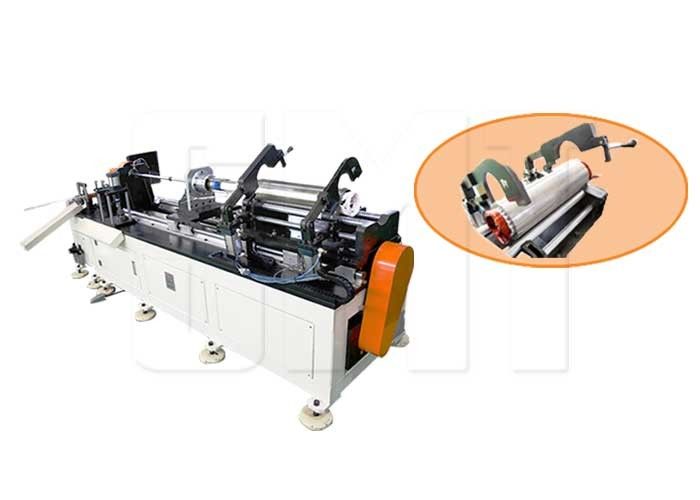

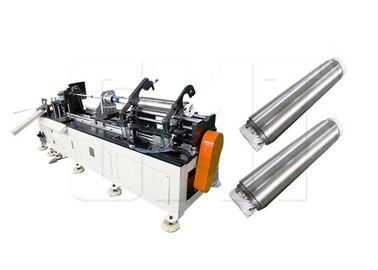

Copper Wire Coil Insertion Machine for Long Pump Motor Winding Inserting SMT-QX1200


Horinzontal Motor Coil Inserting Machine special for submersible pump / deep well pump motor winding insertion. Combined with Wedge Paper Cutting and Forming Machine.


(1) Technical Parameters


Model SMT-QX1200
Stator I.D ≤Φ40mm
Stator O.D ≤Φ210mm
Stack height ≤1200mm
Compatible wire type Copper wire / PVC wire
Power 5Kw
Power supply 380V 50HZ
Air pressure ≥0.6Mpa
Weight ≈1200Kg
Dimension (L)3350×(W)820×(H)1100mm


(2) Brief Instruction of Machine


Machine "Copper Wire Coil Insertion Machine for Long Pump Motor Winding Inserting" is used for inserting electric coils and wedge insulation to stator slots automatically at one time.

Operators need to transfer coils wound by winding machines to coil inserting machine by manual, as well as the wedge papers.


(3) Main Specifications


1. The machine is specialized for inserting coils of submersible pump motor stator;

2. Suitable for motor stators with large stack height and small inner diameter;

2. It can insert the coil and wedge paper into stator slot automatically at a time;

3. Coil pushing is driven by servo motors;

4. Both copper wires and PVC wires can be inserted automatically;

5. Wedge paper cutting and forming machine is combined with coil inserting machine;

Copper Wire Coil Stator Winding Inserting Machine For Pump Motor Winding And Inserting 0


(4) Services


Combining years of experience, we can provide high-qualified machines which are simple operated and easy for maintenance, including single set machine or whole production line machines.

Before placing an order, we can have a technical discussion if customers have any doubt. And if customers have any requirement in design or allocation, we also will try our best to satisfy them.

Besides, our warranty time is one year and during this period, we’ll offer some spare parts for free if they’re broken due to quality issue or design issue. Before delivery, we’ll also offer some wearing parts for free.

When customers have some problems with the machine, inform us and our after-sales engineers will be in customer’s site in the shortest time.


(5) Application of SMT Machines


SMT machines can finish slot insulation insertion, coil winding, inserting, forming and lacing automatically, which are suitable for various motors of new energy automobile, generator, garden tools, fans, exhaust fan, compressor, water pump and deep well pump, household appliance, reducer, BLDC motor and so on.


(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co., Ltd.

Suzhou Smart Motor Equipment Manufacturing Co., Ltd. is located in Suzhou, a commercial and tourist city in Yangtze River Delta, which is convenient for our foreign trade.

We SMT are the manufacturer of motor production machines, like Winding Machine, Coil Inserting Machine and so on.

Since established in year 2010, we began to provide customers with high-qualified products, excellent after-sales service and professional technical support. And we expanded our company site from 800 square meters to 5000 square meters within one year. From that time on, we began to do foreign trade by ourselves and keep developing the foreign market.

Until now, we have many customers like SEW, ABB, Siemens, WEG, REGAL, HITACHI, EMERSON and YILMAZ etc. from different countries.
