Automatic Small Motor Stator Slot Coil / Wedge Inserting Machine

Automatic Small Motor Stator Slot Coil / Wedge Inserting Machine

  • Automatic Small Motor  Stator Slot Coil / Wedge Inserting Machine
Automatic Small Motor  Stator Slot Coil / Wedge Inserting Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-k90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box With Plastic Bag
Delivery Time: 7 - 10 weeks
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 7 - 10 weeks
Contact Now
Detailed Product Description

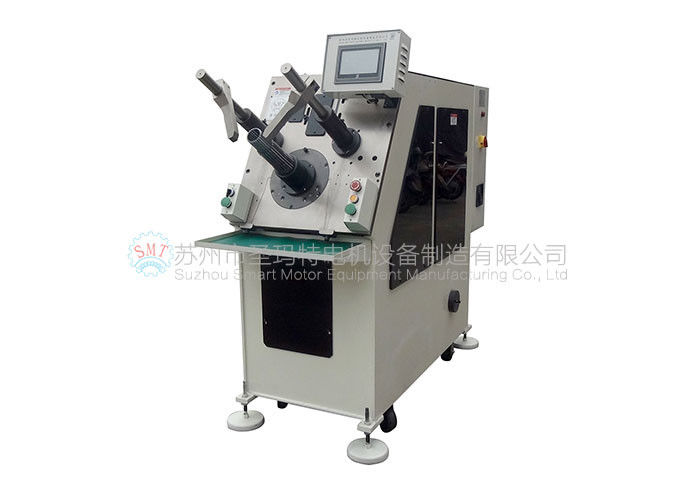

Name: Small Motor Automatic Coil Inserting Machine For Stator / Coil Inserting Machine Model: K90
Stator I.D.: 20-100mm Stator O.D.: ≤160mm
Tooling Travel: 3-10mm Power Supply: ≤70mm
Color: Cutomer Material: Steel
High Light:

Wedge Inserting Machine


Coil Insertion Machine


Auto Wedge Inserting Machine

Small Motor Automatic Coil Inserting Machine for Stator / Coil Inserting Machine SMT - K90


Stator coil inserting tool for automatic coil inserting machine/AC/DC electric motor stator coil and wedge


Stator slot coil and wedge insertion tooling,combined with pushrod,wedge guide,blade and stripper.Used for the stator winding coils and wedges inserting into the stator slots automatically,driven by the servo motor.
Alloy steel hard material
Full range of kinds for all the stator coil inserting machines
Advanced processing equipment and skilled works ensure the consistent quality
High continuous output to provide fast delivery and reasonable price
All parameters could be designed according to different customers' special requirement.
the main procedures: rough grinding, form grinding, pricision grinding, punching hole, wire cutting, hot treatment,assembling etc.


(1) Main Technical Data


Model K90
Stator I.D. 20-100mm
Stator O.D. ≤160mm
Stack Height ≤120mm
Tooling Travel ≤70mm
Appropriate Wire Copper Wire / Aluminium Wire
Slot number range 8-48slot
Power Supply 380V/50/60Hz 3Kw
Weight 850kgs
Machine dimension (L)1800*(W)650*(H)1700mm


(2) Application

The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

(3) Machine Main Characteristic


It is a special design specific to different design or different sizes of slot; can finish insulation paper insertion at a time; automatic adjustment to perimeter, automatic cutting paper, automatic hemming and automatic inserting when inserting to various or different-sized slot; use servo paper inserting machine to feed paper and settle breadth; interpersonal interface sets required specific parameter; forming mould is adjustable to different sizes of slot automatically; characterized by simple operation, low noise, fast speed and high automaticity.
The equipment adopts programmable terminal, also called touched screen, that can set and display necessary information, it is easy to operate and reliable.


(4) OEM/ODM


Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.


(5) Production Line Profile


With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.


(6) About Us


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
