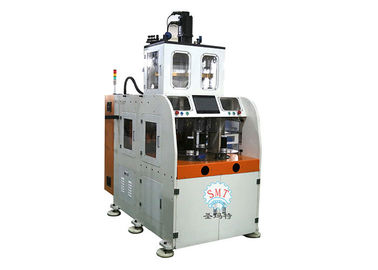

2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine Manufacturing / Double Head

2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine Manufacturing / Double Head

  • High Light

    ceiling fan coil winding machine

    ,

    electric motor coil winding machine

    ,

    Two Heads Stator Winding Machine

  • Name
    Electrical Winding Machine For Stator
  • Wire Speed
    ≤3000r/min
  • Transfer Number
    2-6pcs
  • Power Supply
    380v/50/60Hz 7Kw
  • Condition
    New
  • Warranty
    12 Months
  • Winding Head
    1pcs
  • Max Stack Height
    ≤70mm
  • Mould Life
    >1,000,000 Shots
  • Automatic Grade
    Full-Automatic
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO9001/SGS/CE
  • Model Number
    SMT-SLR150
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case Suitable for Sea Transportation.
  • Delivery Time
    80 - 100 days for 1set
  • Payment Terms
    T/T, L/C,
  • Supply Ability
    2pcs/ 56 - 80 days

2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine Manufacturing / Double Head

2 Winding Heads Electrical Motor Automatic Stator Winding Machine for Washing Machine



This machine has two winding heads with four working station. The main phase and auxiliary phase can be wound simultaneously. It is suitbale for high production capacity, high slot filling rate, small slot opening stator coil winding. Different winding mode can be selected in the touch screen, like auto skip, auto cutting and auto indexing.

Other parameter also can be set in the touch screen, like continuous/discontinuour winding method.



 Main Technical Data




Model
SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200 SLR70 QLR70
Winding Head 1 1 1 1 2 4
Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.2~1.0 0.2~1.0
Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 3000 3000
Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤70mm ≤70mm
Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 7Kw 7Kw
Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1950Kg ≈2300Kg
Dimension
(L×W×Hcm)
180×110×200 180×120×220 180×130×230 220×180×250 180×130×205 135×100×180


The automatic stator winding machine has 2 winding heads working stations with turntable. It can wind coils directly and orderly into transfer cups. Especially suitable for stators with high slot fill factor and small slot opening. It's easier for operators to insert the coils of stators with high slot fill factor and small slot opening width. So the automatic stator winding machine can save labor effectively.


1. Automatic put the coil into transfer former orderly; Able to exactly wind coils onto the forklike flywheel and easily transfer the coil to coil inserter, with high efficiency and great inserting winding effect.
2. Double winding heads automatic stator winding machine; the electric motor coil winding machine is a double-station automatic vertical winding machine, The turntable is two stations structure.
3. The stator winding machine adopts servo system to rotate and index transfer form. Winding mode such as automatic skip, automatic cutting and automatic indexing can be finished successively at one time;
4. Each coil winding machine has one set winding tooling and three vertical winding forms.
5. Especially suitable for stators with high slot fill factor and small slot opening;
6. The whole set of tooling can be changed, and it takes about 15min.
7. Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
8. PLC can set Parameters, turn number, winding speed, winding tension, tooling sunk height, tooling sunk speed and winding direction is adjustable.
9. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;
10. X and Y spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
11. Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
12. The stator winding machine can wind single or multiple wires simultaneously.
13. And it is endowed with the display function of dynamic turns, actual turns, set turns, failure causes and position self-check.
14. Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
15. The automatic coil winding Machine has no distinct vibration and noise.
16. The stator winding machine saves labor and has high efficiency.


 Application
The automatic stator winding machine is suitable single phase induction motor and three phase motor manufacturing ,and mainly used in the field of household appliances, such as washing machine, fan, refrigerator, air conditioner, recorder, video recorder, video player, vacuum cleaner, camera, hair dryer, electric shaver, etc.

 Maintenance
1. Before running machine, check the automatic stator winding machine mechanical parts, electric, hydraulic parts, lubricating parts, and check if the fastener loosen, running parts make any noise and electric parts running normally or not. After checking ok, machine can be running.
2. After stator winding machine working, clear the dust and reset the machine.
3. Clear the electric elements every three month.
4. Check if there is water in the filter of hydraulic parts. If yes, please drain away water on time.
5. Check if there is oil on the lubricator of hydraulic parts. If no oil, please add oil on time.
6. Check if lubricating status of guide mechanism. If no lubricating oil, please add lubricating oil on time.
7. Please check the magnet valve screw and pipe joint every three month.
8. Please check the filter and air filter every two month.
9. Please check the air pressure very year once.
10. Add mechanical oil
