    Detailed Product Description
    Name: Vertical Motor Stator Winding Machine 2 / 4 / 6 And 8 Poles Wire Speed: ≤3000r/min
    Transfer Number: 2-6pcs Power Supply: 380v/50/60Hz 7Kw
    Weight: 1100kg Dimension: (L)1800X(W)1200X2200mm
    Winding Head: 1pcs Max Stack Height: ≤70mm
    Mould Life: >1,000,000 Shots Automatic Grade: Full-Automatic

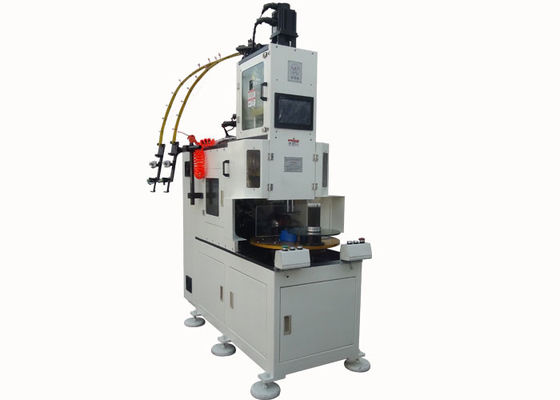

    Automatic Vertical Motor Stator Winding Machine 2 / 4 / 6 and 8 Poles Coils Winding





    1. Six Spindles are controlled by servo motors.
    2. Double winding heads and four stations wind two phase coils at a time ,which can wind single and multiple wires .

    3. Vertical winding machine series wind coils directly and orderly into transfer cups .
    4. Main spindle, high speed mold dipping ,hooking and cutting wire, turntable and transfer cup index are all controlled by servo motors ,.
    5. It is especially suitable for the coil inserting of stator with high slot fill factor and slot openning .
    6. It saves labor and has high efficiency .



    (1) Main Technical Data




    Model
    SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200  LR150 QLR150A
    Winding Head 1 1 1 1 1  1
    Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.3~1.2mm 0.3~12
    Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 2500 2500
    Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤120mm ≤150mm
    Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
    Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 8Kw 8Kw
    Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
    Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1600Kg ≈1800Kg
    Dimension
    (L×W×Hcm)
    180×110×200 180×120×220 180×130×230 220×180×250 180×120×220 180×130×230



    (2) Machine main function and characteristic


    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (3) OEM/ODM Profile



    1. A manufacturing and trading company of motor production machine ;

    2. Products are applied to induction motors, such as washing machine motors, air-conditioner motor, pump motor, three-phase motor, fan motor and compressor motor, etc.

    3.Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work.

    4.We export our machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc. and our machines share the great reputation among customers for its durable, reliable performance, reasonable price and good after service.

    , etc. and our machines share the great reputation among customers for its durable, reliable performance, reasonable price and good after service.





    (4) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



    (5) About Our Factory



    Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 100 employees, including more than 30 engineers and technicians, with the building area about 4500 square meters and a hundred sets of advanced production equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
