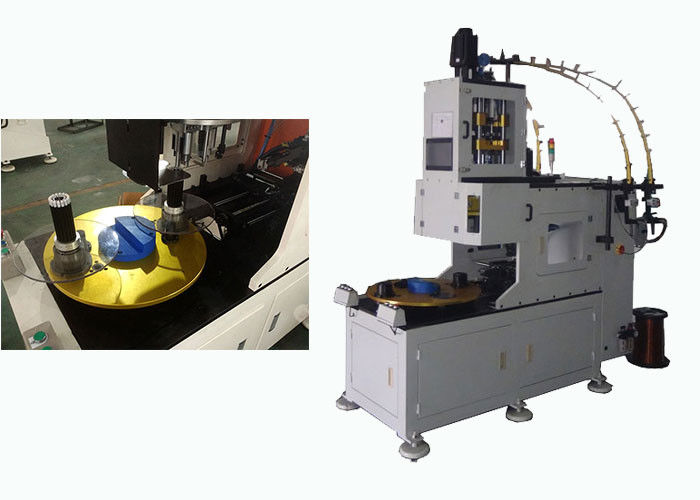

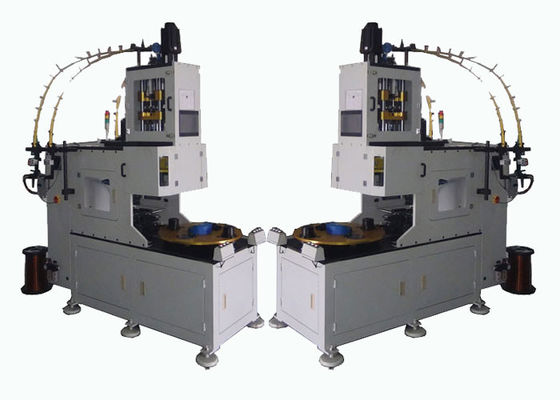

Automatic Electric Motor and Generator Stator Coil Winding Machine SMT - LR100

Automatic Electric Motor and Generator Stator Coil Winding Machine SMT - LR100

    • Automatic Electric Motor and Generator Stator Coil Winding Machine SMT - LR100
    • Automatic Electric Motor and Generator Stator Coil Winding Machine SMT - LR100
    • Automatic Electric Motor and Generator Stator Coil Winding Machine SMT - LR100
    • Automatic Electric Motor and Generator Stator Coil Winding Machine SMT - LR100
  • Automatic Electric Motor and Generator Stator Coil Winding Machine SMT - LR100

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001/SGS/CE
    Model Number: SMT-LR100

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box
    Delivery Time: 37 - 68 days
    Payment Terms: T/T, L/C, Western Union
    Supply Ability: 1pcs/ 37 - 68 days
    Contact Now
    Detailed Product Description
    Name: Automatic Electric Motor And Generator Stator Coil Winding Machine Color: White
    Wire Speed: ≤3000r/min Flier: 200mm
    Transfer Number: 2-6pcs Power Supply: 380v/50/60Hz 7Kw
    Weight: 1100kg Dimension: (L)1800X(W)1100X2200mm
    Winding Head: 1pcs MOQ: 1pcs

    Automatic Electric Motor and Generator Stator Coil Winding Machine For Long Motor Stator





    (1) Main Technical Data



    Winding speed ≤3000r/min
    Suitable wire diameter 0.2-1.2mm
    Coil perimeter 650mm
    Suitable motor poles 2,4,6,8
    Suitable motor poles 2,4,6,8
    Suitadle down-lead length(Max) 200mm
    Winding direction Self-selecting
    Counting range 0-9999/Circle
    Fly fork diameter 300mm
    Operating voltage Three phase 3PH 380V 50Hz
    Power 7kw
    Air pressure 0.6-1MPa
    Weight about 1100Kg
    Dimension (L×W×H) (L)1800X(W)1100X(H)2200mm



    (2) Application


    This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

    (3) Machine main function and characteristic


    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Automatic Electric Motor and Generator Stator Coil Winding Machine SMT - LR100

    (6) About Our Factory

    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
