Automatic Motor Stator Coil Making Machine , Motor Winding Equipment

Automatic Motor Stator Coil Making Machine , Motor Winding Equipment

    • Automatic Motor Stator Coil Making Machine , Motor Winding Equipment
    • Automatic Motor Stator Coil Making Machine , Motor Winding Equipment
  • Automatic Motor Stator Coil Making Machine , Motor Winding Equipment

    Product Details:

    Place of Origin: China
    Brand Name: SMT
    Certification: ISO9001 / SGS
    Model Number: SMT-R650

    Payment & Shipping Terms:

    Minimum Order Quantity: 1 Set
    Price: Negotiable
    Packaging Details: Plywood Box or You Can Tell Us.
    Delivery Time: 44 - 69 days
    Payment Terms: T/T, L/C
    Supply Ability: 1pcs / 44 - 68days
    Contact Now
    Detailed Product Description
    Name: Automatic Motor Stator Coil Making Winding Machine SMT - DR450 Demoulding: Automatic
    Transfer Number: 2-6pcs Power Supply: 220V/50/60Hz 2.2Kw
    Winding Head: 2pcs Wire Diameter: 0.3-1.2mm
    Effective Length Of The Tooling: ≤400mm Wegiht: 980kg
    Color: White

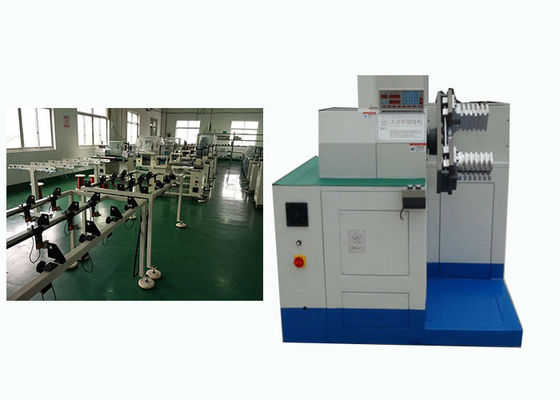

    Automatic Motor Stator Coil Making Machine , Motor Winding Equipment





    1. The machine should be installed in the environment with clean air, and suitable humidity.
    2. The stepping motor should be keep clean, avoid impaction by hard things.
    3. Regularly lubrication. This machine adopts imported lubrication system; fill the oil tank with 40 # oil. It can be judged whether it needs refuel or not through view hole.
    4. The critical part of the machine adopts imported high-precision dustproof bearings, normally, it don't need to maintain. If it can't rotate smoothly or choked, need to replace bearings.
    5. All of the cylinder are oil-free lubrication types, normally, don't need to add oil to the oil sprayer, while you need to fill the filter with water.
    6. The magnetic switch on the cylinder body and the proximity switches on the machine don't need to be adjusted.



    (1) Main Technical Parameter



    Model R650
    Swing diameter ≤450mm
    Effective length of the tooling ≤400mm
    Parallel wire number ≤16pcs
    Wire diameter 0.3-1.2mm
    Wire arraying width 400mm
    Power supply 220V/50/60Hz 2.2Kw
    Machine weight 950kgs
    Air Pressure 0.4-0.6MPa
    Machine dimension (L)1500*(W)1700*(H)1550mm



    (2) The operation steps of this machine


    Production efficiency of this machine
    Around 1000pcs/8 hours,it is only a rough idea, depends on the armature slots number and turn number.
    Load armature on the shuttle manually, press START button,shuttle will deliver the armature to the winding position, and automatic winding, indexing and wire cutting,after completing, the shuttle will take out the finished armature from winding position, operator unload the finished armature, one cycle is completed.


    (3) Machine Main function and Characteristic


    Winding tooling: each machine has one set winding tooling and three vertical winding forms.
    The whole set of tooling can be changed, and it takes about 15min.
    The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
    Allow three wires winding simultaneously.
    Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
    The working rotation speed can be set . Machine has no distinct vibration and noise.
    Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
    PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
    X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
    Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



    (4) OEM/ODM Profile


    Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



    (5) Production Line Profile



    With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

    Automatic Motor Stator Coil Making Machine , Motor Winding Equipment

    (6) About Smart



    Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
