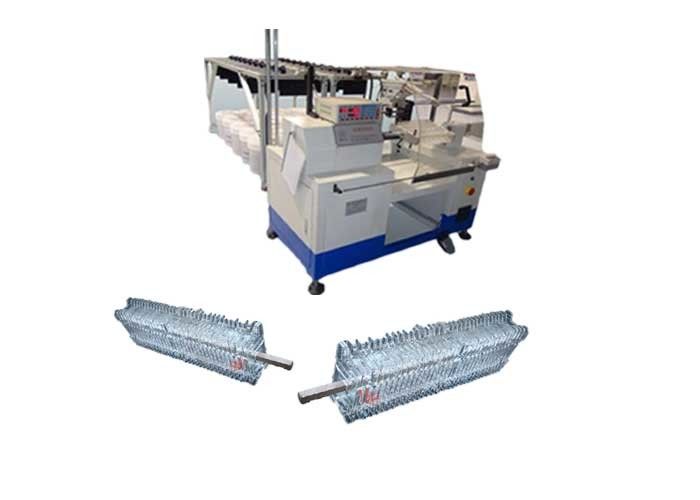

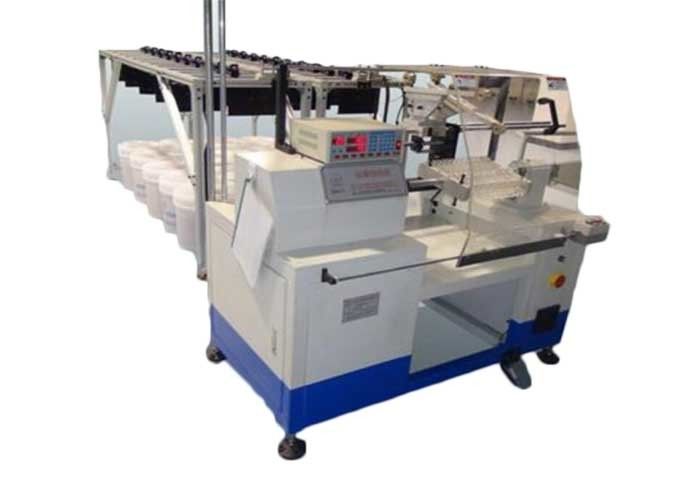

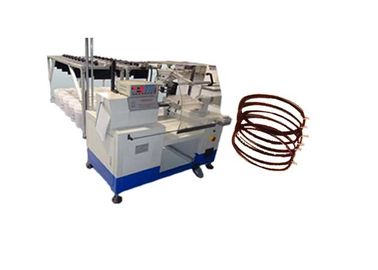

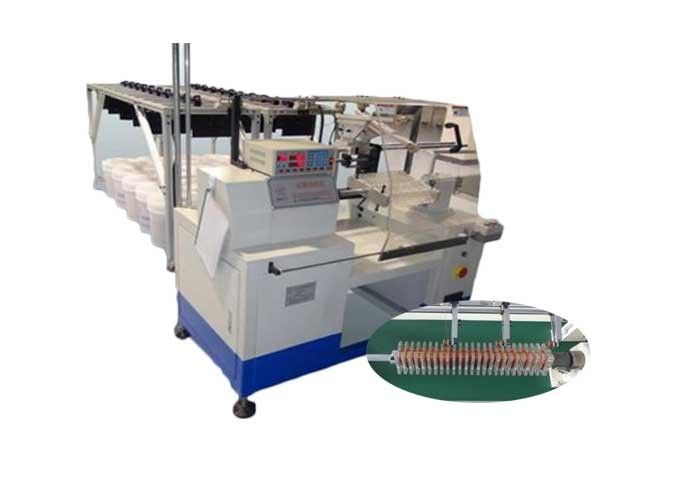

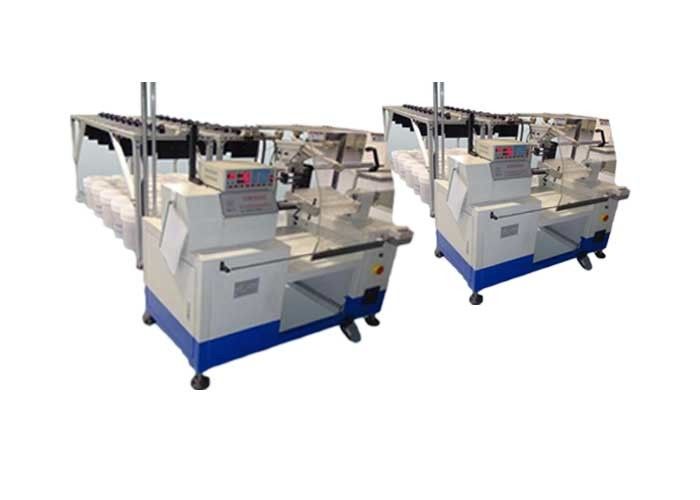

    Name: 3 Winding Heas Coiling Copper Wires For 3 Phase Motor Winding Stator Making Model: SMT-R350
    Winding Head: MAX: 3 Pcs Wire Dia.: Φ1.5mm
    Transfer Distance: Max: 400mm N.W: ≈670Kg

    3 Winding Heas Coiling Copper Wires for 3 Phase Motor Winding Stator Making SMT-R350





    Equipped with 1 - 3pcs winding head, which can wind 3 group coils at one time automatically. Comapred with other winding machines, this kind of machine is simpler and cheaper which is convenient for maintenance. Operator need to unload coils manually.



    (1) Technical Parameters



    Model SMT-R350
    Wire diameter Φ0.2~Φ1.5mm
    Winding form diameter ≤350mm
    Parallel wire no. ≤16pcs
    Winding head 1~3pcs
    Transfer distance ≤400mm
    Unload winding speed ≤2500r/min
    Power supply 220V/50/60Hz 1.5Kw
    Air pressure ≥0.4MPa
    Weight ≈670Kg
    Dimension (L)1550×(W)1250×(H)1400mm



    (2) Brief Instruction of Machine



    Machine "3 Winding Heas Coiling Copper Wires for 3 Phase Motor Winding Stator Making" is used for winding electric wires to the winding form automatically and orderly to make stator coils.

    Operators need to unload the coils by manual while it's easy to repair with low cost if happens with faults.



    (3) Main Specifications



    1. This machine is specially designed for multiple wire even with more parallel coils winding, such as alternator motor, servo motor and three phase motor.

    2. The machine adopts special purpose controller which could set the function of arraying direction, winding start point, slow starting, slowing ending, sides stop, auto width, auto reset, etc.

    3. The machine can be equipped with automatic through-sleeve device.



    (4) Services



    We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.

    Design & manufacturing are according to standard idea and customer's request. For example, mahcine out-look, color, components brand and so on, all can be specilized if customer has special request. Besides, we can help to design the layout of machines of customer site when necessary.

    Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer meet problems and need our technicans be their site, our after-sales engineers will be at customer's site sonnest.

    We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.



    (5) Production Line Service



    With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.

    So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
