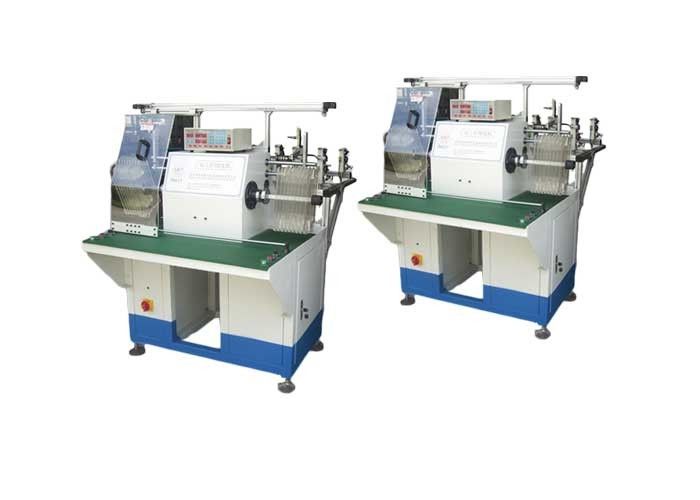

Automatic Two Station with Turntable AC/DC Motor Coil Winding Machine SMT-SR350
Equipped with double winding stations and winding heads, which can wind two group coils at one time or separately automatically. Operator need to unload coils manually. Two stations are working separately so that it can save time of loading and unloading because one is winding and the other one can be unloaded.
(1) Technical Parameters
|Winding form diameter||≤Φ380mm|
|Unload winding speed||≤1500r/min|
|Power supply||220V/50/60Hz 1.5Kw|
(2) Brief Instruction of Machine

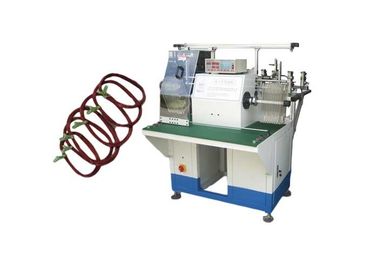

Machine "Automatic Two Station with Turntable AC/DC Motor Coil Winding Machine" is used for winding electric wires to the winding tools automatically and orderly. It's special for double separate work stations.
Operators need to unload the coils by manual while it's easy to repair with low cost if happens with faults.
(3) Main Specifications
1. It is newly developed for high-power motor of general-purpose use.
2. Two stations can work individually, while one is at operation, the other can be unloaded, which is characterized by less intermittent time, higher utilization ratio and output.
3. Automatic coil span program & turns count.
4. Automatic cut and reset & manual clamp.
5. Automatic cut, re-clamp and start can be set by optional controller.
6. Tooling loaded/unloaded manually.
7. Can be equipped with an optional through-sleeve device.
8. It has various kinds of operate mode, such as multilayer tapped winding, slot-hopping winding, multi-wire winding, automatic insulated sleeve assembly, etc. are available.
9. It is mainly applied to coil winding for three phase motor, generator motor and deep pump motor.
