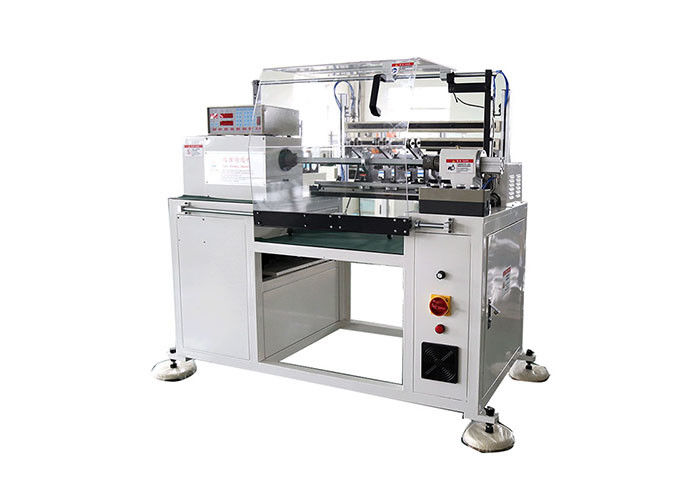

Name: Double-station Motor Winding Machine For Electric Motor AC / DC Production Model: SMT-SR350
Winding Head: Double Pcs Voltage: 220V, 50/60Hz
Power: 1.5Kw NW: ≈900Kg


Double-station Motor Winding Machine for Electric Motor AC / DC Production SMT-SR350


(1) Technical Parameters


ModelSMT-SR350
Wire diameterΦ0.3mm~Φ1.2mm
Winding form diameter≤Φ380mm
Winding head2pcs
Transfer distance≤250mm
Unload winding speed≤1500r/min
Air pressure≥0.4MPa
Power supply220V/50/60Hz 1.5Kw
Weight≈900Kg
Dimension(L)2000×(W)1450×(H)1500mm


(2) Brief Instruction of Machine

Machine "Double-station Motor Winding Machine for Electric Motor AC / DC Production" is used for winding electric wires to the winding tools automatically and orderly. It's special for double separate work stations.
Operators need to unload the coils by manual while it's easy to repair with low cost if happens with faults.


Equipped with double winding stations and winding heads, which can wind two group coils at one time or separately automatically. Operator need to unload coils manually. Two stations are working separately so that it can save time of loading and unloading because one is winding and the other one can be unloaded.

(3) Main Specifications

1. It is newly developed for high-power motor of general-purpose use.
2. Two stations can work individually, while one is at operation, the other can be unloaded, which is characterized by less intermittent time, higher utilization ratio and output.
3. Automatic coil span program & turns count.
4. Automatic cut and reset & manual clamp.
5. Automatic cut, re-clamp and start can be set by optional controller.
6. Tooling loaded/unloaded manually.
7. Can be equipped with an optional through-sleeve device.
8. It has various kinds of operate mode, such as multilayer tapped winding, slot-hopping winding, multi-wire winding, automatic insulated sleeve assembly, etc. are available.
9. It is mainly applied to coil winding for three phase motor, generator motor and deep pump motor.

(4) Services

We're dedicated to developing and producing machinery / equipment for electric motors production, such as Winding machine, Coil Inserting Machine, etc.
Design & manufacturing are according to standard idea and customer's request. For example, mahcine out-look, color, components brand and so on, all can be specilized if customer has special request. Besides, we can help to design the layout of machines of customer site when necessary.
Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer meet problems and need our technicans be their site, our after-sales engineers will be at customer's site sonnest.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.

(5) Production Line Service

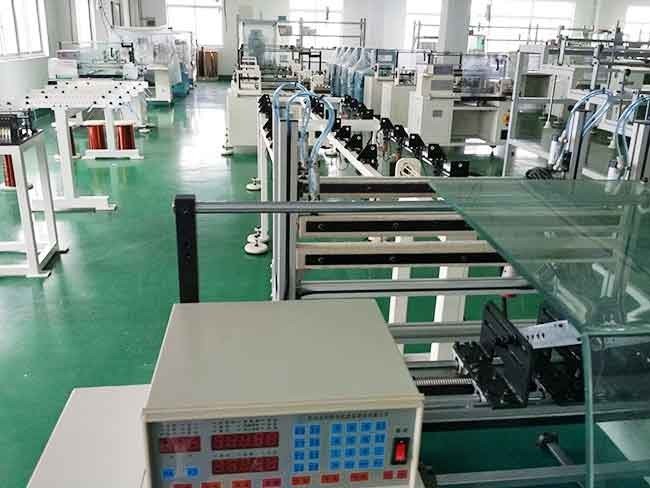

With excellent after-service, professional engineers and high quality, SMT provide customer with various kinds of equipments for electric motors production. It can be one set machine or the whole prodcution line from winding process to final forming process.
So if customer wants the whole production line, we can provide manufacturing technical consulting service and turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
