Automatic Vertical Stator Winding Machine for Table Fan Motor Winding Production

Automatic Vertical Stator Winding Machine for Table Fan Motor Winding Production

Automatic Vertical Stator Winding Machine for Table Fan Motor Winding Production

Product Details:

Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS / BV
Model Number: LR150-I

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: Price unit: USD; Price can be negotiated as per customer requirement.
Packaging Details: Plastic stretching film, vacuum package, plywood cases. The dimension depends on actual machine size.
Delivery Time: 45-50 days after receiving advance payment
Payment Terms: T/T, L/C
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Automatic Vertical Coil Winding Machine For Table Fan Motor Stator Winding Model: LR150-I
Winding Head: Single Speed: ≤2500RPM
Stack Height: Max120mm Warranty: 12 Months

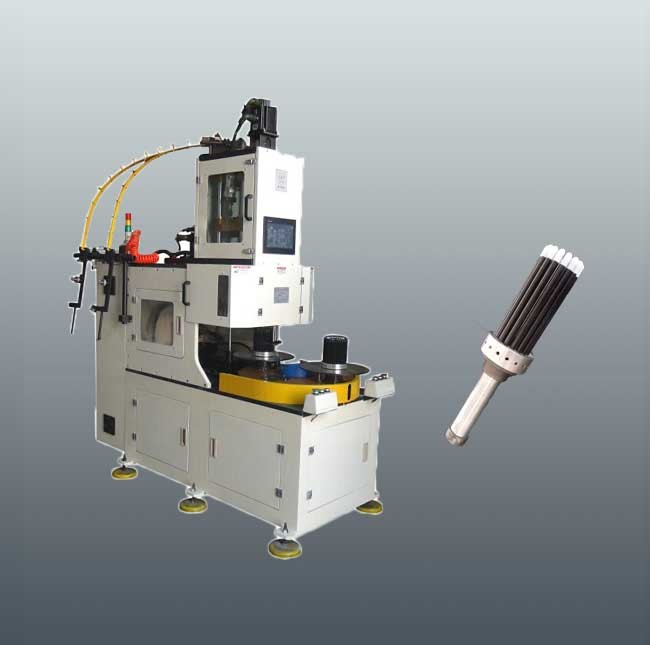

Automatic Vertical Coil Winding Machine for Table Fan Motor Stator Winding SMT-LR150-I


Equipped with single winding head, double stations with turntable, winding stator coils into transfer cups directly and orderly, which is under six servo motors' control. Coils made by automatic machine is easier for being inserted to slots, even the stators with high slot fill factor and small slot opening width. Meanwhile it can save labor effecitvely.

(1) Technical Parameters


Model SMT-LR150-I
Winding head 1 pc
Wire diameter D0.3-D1.0mm
Winding speed ≤2500r/min
Stack height ≤120mm
Winding precision ±0 turn
Power supply 380V/50/60Hz 8Kw
Air pressre ≥0.6MPa
Weight ≈1600Kg
Dimension (L)1800×(W)1200×(H)2200mm














(2) Brief Instruction of Machine

Machine "Automatic Vertical Coil Winding Machine for Table Fan Motor Stator Winding" is used for winding electric wires to several coils automatically and putting coils into transfer cup orderly.
It adopts six servo motors to control the motion, like hooking & cutting wire, turntable rotating and transfer cup indexing, etc. It can achieve higher qualification rate.
Operators need to stand when operating.

(3) Main Specifications

1. Equipped with single head and double stations, winding coils automatically;
2. Winding one phase coils at one time, which is suitable for several parallel wires;
3. Winding coils into transfer cup automatically and orderly;
4. The main spindle, high-speed mold dipping, hooking and cutting wire, turntable rotation and transfer cup index are all under servo motors control;
5. Especially suitable for stators with high slot fill factor and small slot opening;
6. Winding mode such as automatic skip, automatic cutting and automatic indexing can be set in human-machine interface, winding tension is adjustable;
7. Obtain continuous or discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding;
8. Saving labor and has high efficiency.

(4) Services

We foucus on developing and producing machines / equipment for induction motors production, such as Winding machine and Coil Inserting Machine and so on.
Design and manufacturing of these products are as customer's request. For example, shape design, allocation and color,etc. can be specilized if customer has special request. Moreover, we can help to arrange the layout of machines in customer site when necessary.
Our engineers will provide customer with technical support. Within one year warranty period, some technical support and some parts need to replace will be for free. Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.
We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.

(5) Production Line Service

With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcuting line from winding process to final forming process. So if customer wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.
