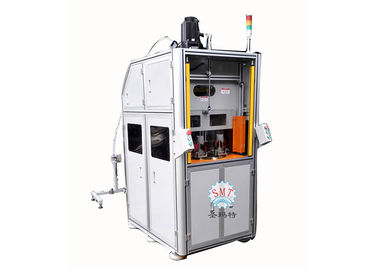

2 Heads Motor Stator Winding Machine For Pump ≤ 3000r/min ISO9001 / SGS

2 Heads Motor Stator Winding Machine For Pump ≤ 3000r/min ISO9001 / SGS

  • High Light

    ceiling fan coil winding machine

    ,

    electric motor coil winding machine

    ,

    2 Heads Stator Winding Machine

  • Name
    2 Heads Motor Stator Winding Machine For Pump
  • Wire Speed
    ≤3000r/min
  • Transfer Number
    2-6pcs
  • Power Supply
    380v/50/60Hz 7Kw
  • Condition
    New
  • Warranty
    12 Months
  • Winding Head
    1pcs
  • Max Stack Height
    ≤70mm
  • Mould Life
    >1,000,000 Shots
  • Automatic Grade
    Full-Automatic
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO9001/SGS/CE
  • Model Number
    SMT-SLR70
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case Suitable for Sea Transportation.
  • Delivery Time
    30 - 45 days for 1set
  • Payment Terms
    T/T, L/C,
  • Supply Ability
    2pcs/ 56 - 90 days

2 Heads Motor Stator Winding Machine For Pump ≤ 3000r/min ISO9001 / SGS

2 Heads Motor Stator Winding Machine For Pump ≤ 3000r/min Wire Speed ISO9001 / SGS



This machine is used for the first process of motor stator producing, it conducts gang control the machine winding main shaft, transfer cup indexing shaft, dip mold motor shaft through PLC control system assembly, and winds various types of enamelled copper/aluminum wires. It has advantages of winding premeter accurate, winding neat arrange, high production efficiency, saving labour, simple & reliable maintenance etc.
Adopts 4 turning stations, no interference for the coil winding and load/unload
coil turns accuracy 0.2 turn
more than 200 types of winding parameters could be stored



(1) Main Technical Data




Model
SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200 SLR70 QLR70
Winding Head 1 1 1 1 2 4
Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.2~1.0 0.2~1.0
Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 3000 3000
Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤70mm ≤70mm
Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 7Kw 7Kw
Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1950Kg ≈2300Kg
Dimension
(L×W×Hcm)
180×110×200 180×120×220 180×130×230 220×180×250 180×130×205 135×100×180

(2) Application


This machine is suitable for 2 poles, 4 poles and 6poles coils winding.
2 Heads Motor Stator Winding Machine For Pump ≤ 3000r/min ISO9001 / SGS 0
(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

2 Heads Motor Stator Winding Machine For Pump ≤ 3000r/min ISO9001 / SGS 1

(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



(6) About Our Factory

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
