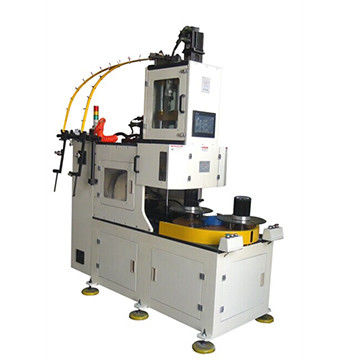

Automatic Coil Winding Machine For AC Motor Induction Motor

Automatic Coil Winding Machine For AC Motor Induction Motor

  • Highlight

    2000r/min AC Motor Winding Machine

    ,

    Induction Motor Stator Winding Machine

    ,

    Automatic Coil Winding Machine 150mm

  • Name
    Automatic Coil Winding Machine For AC Motor Induction Motor
  • Wire Speed
    ≤2000r/min
  • Transfer Number
    2pcs
  • Condition
    New
  • Warranty
    12 Months
  • Winding Head
    1pcs
  • Max Stack Height
    ≤150mm
  • Application
    Stator Production
  • Automatic Grade
    Full-Automatic
  • OEM
    Yes
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO9001/SGS/CE
  • Model Number
    SMT-LR150
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case Suitable for Sea Transportation.
  • Delivery Time
    50-60 days for 1set
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs/ 50-60 days

Automatic Coil Winding Machine For AC Motor Induction Motor

Automatic Coil Winding Machine for AC Motor Induction Motor





This machine mainly used for the 2 poles stator’s winding. One stator will be winded in each cycle, greatly improving production efficiency, automatic loading and removing mould, to reduce artificial labor intensity. Winding process can realize tapping(5 times), clamping functions, the stroke and pivot angle of fly fork lever stroke can be adjusted within a certain range according to need. Total aluminum alloy(anodic oxidation treatment) frame with imported acrylic protection. Electric is mainly controlled by PLC, displayer, and frequency converter. Safe and reliable setting, display.



Machine main function and characteristic

The electric motor coil winding machine is a double-station automatic vertical winding machine, The turntable is two stations structure. It adopts servo system to rotate and index transfer form.

Able to exactly wind coils onto the forklike flywheel and easily transfer the coil to coil inserter, with high efficiency and great inserting winding effect.

Each coil winding machine has one set winding tooling and three vertical winding forms.

The whole set of tooling can be changed, and it takes about 15min.

Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.

PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.

X and Y spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.

Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.

Allow two wires winding simultaneously.

And it is endowed with the display function of dynamic turns, actual turns, set turns, failure causes and position self-check.

Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.

The automatic coil winding Machine has no distinct vibration and noise.



(1) Main Technical Data



Model LR150
Winding Head 1pc
Wire Diameter 0.3-1.0mm
Stack height ≤150mm
Unload speed ≤2000r/min
Winding precision ±0turn
Air pressure ≥0.6MPa
Power supply 380V/50/60Hz 8Kw
MOQ 1set Automatic Coil Winding Machine
Certification ISO9001:2008;SGS

(2) Application


This machine is suitable for 2 poles, 4 poles and 6poles coils winding.

(3) Machine main function and characteristic


Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



(4) OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
