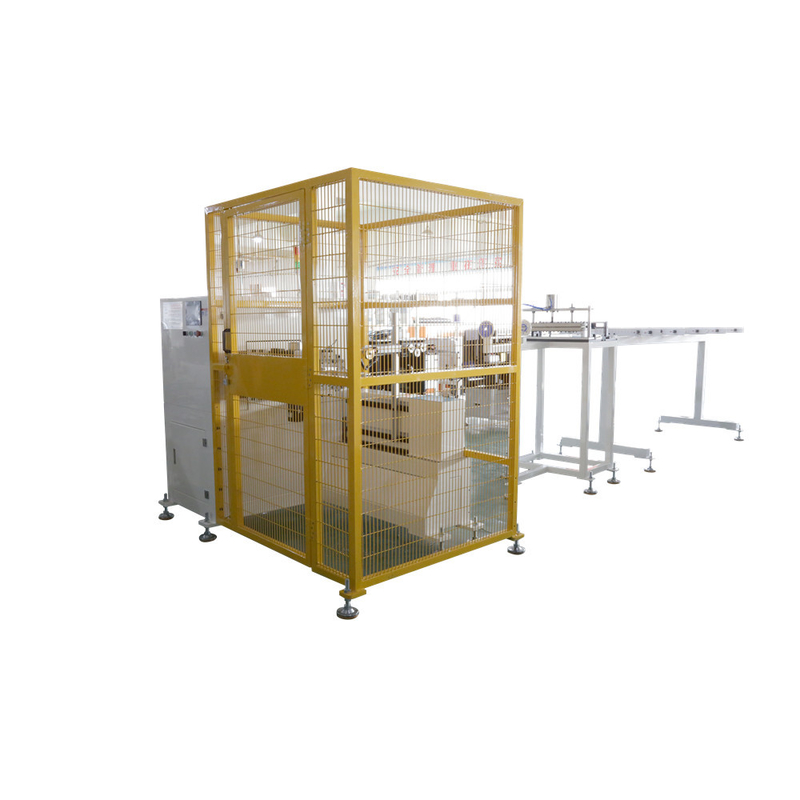

220V Semi-Automatic Coil Winding Machine 1000r/Min for Electric Motor
Product Summary
1000r/Min Semi Automatic Coil Winding Machine For Electric Motor Semi-automatic Coil Winding Machine for Electric Motor This advanced semi-automatic coil winding machine is designed for efficient hook type commutator armature winding in electric motor production. Key Features Designed for winding ...
Product Custom Attributes
Name:
Semi-automatic Coil Winding Machine For Electric Motor
Flier:
200mm
Power Supply:
220v/50/60Hz 4.5Kw
Air Pressure:
0.4-0.7MPa
Power:
Electric
Slot Number:
24-48 Slots
Customized:
Customized
Max. Rotation Speed:
1000r/Min
Highlight:
220V semi-automatic coil winding machine
,electric motor coil winder 1000r/min
,semi-automatic winding machine with warranty
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
ISO9001/SGS
Model Number:
SMT-DR1200
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden Box Packaging Fit for Your Machine.
Delivery Time:
60-70 days
Payment Terms:
T/T,L/C
Supply Ability:
1pcs / 60-70 days
Product Description
1000r/Min Semi Automatic Coil Winding Machine For Electric Motor
Semi-automatic Coil Winding Machine for Electric Motor
This advanced semi-automatic coil winding machine is designed for efficient hook type commutator armature winding in electric motor production.
Key Features
- Designed for winding hook type commutator armatures
- PLC and touch screen control for easy operation
- Automatic wire winding capability
- Double winding flyer design
- Four adjustable tension settings
- Automatic armature feeding, winding, indexing, and wire cutting
- Optional conveyor system for batch processing
Technical Specifications
| Item | Data |
|---|---|
| Model | DR1200 |
| Swing Diameter | ≤900mm |
| Wire diameter | 0.4 - 1.5mm |
| Parallel Wire No. | ≤ 40 pieces |
| Air Pressure | 0.4 - 0.6 MPa |
| Power supply | 220V/50/60Hz, 3kw |
| Machine weight | About 1100kg |
| Machine dimension (LxWxH) | 2300x2200x2000mm |
Applications
This machine is suitable for 2 poles and 4 poles coils winding, ideal for medium and large wire diameter armature production.
Machine Features
- Includes one set winding tooling and three vertical winding forms
- Tooling change takes approximately 15 minutes
- Two-station turntable with servo system rotation and index transfer
- Capable of three-wire simultaneous winding
- Servo motor controlled main spindle with ±1 turn accuracy
- Adjustable working rotation speed with minimal vibration and noise
- Automatic stop when copper wire runs out
- PLC control for turn number, speed, tooling height, and winding direction
- Servo system for X and Y spindle of wire hooker and cutter
- Maximum 6 segments for tooling sunk
OEM/ODM Capabilities
Our experienced engineering team provides optimized solutions for electric motor manufacturing, with machines exported worldwide to countries including USA, Italy, Australia, India, Brazil, and more. We are recognized for durable, reliable performance and excellent after-sales service.
Production Line Services
We offer comprehensive technical consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, and staff training.
Manufacturing Facility
Located in Suzhou, China, our factory specializes in the R&D and production of induction motor machinery for various applications including washing machine motors, air conditioner motors, pump motors, and compressor motors.
