Servo Coil Inserting Machine for 100-200mm Stator ID
  • name

Servo Coil Inserting Machine for 100-200mm Stator ID

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plywood Box With Sealing
Delivery Period: 8-10 weeks
Payment Method: T/T,L/C
Supply Capacity: 1pcs/7-11 weeks
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO/SGS Audit
Model Number
SMT-QX10
Highlight:

servo coil inserting machine for stator

,

100-200mm stator winding machine

,

winding inserting machine with servo

Product Description

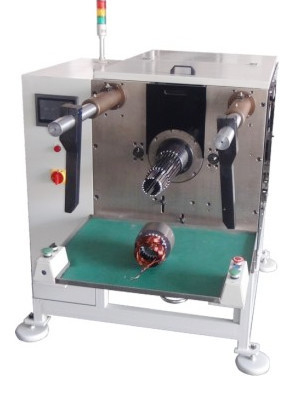

Servo Coil Inserting Machine For 100-200mm Stator ID
Product Description
Servo Coil Inserting Machine 100-200mm Stator ID lS0/ SGS Audit
Application
Suitable for stators used in single phase motors, three phase motors, compressor motors, starter motors, washing machine motors, air conditioners, and more. This machine automatically inserts coils and wedges into stators. Slot number, coil pushing speed, and wedge length are adjustable via HMI, making it suitable for various induction motors.
Information needed for stator winding inserting machine inquiry:
For optimal results, please provide detailed drawings including:
  • Stator lamination drawing
  • Stator stack drawing
  • Wire connection drawing
  • Stator application details
Main Technical Features
This machine features servo motor paper feeding, HMI parameter settings, adjustable inserting speed and wedge feeding modes based on motor slot fill factor and wire type. Tooling changeover time is ≤10 minutes.
Model SMT-QX10
Core length ≤250mm
Stator I.D Φ100-200mm
Stator O.D Φ170-260mm
Stack Height Range 90-220mm
Tooling stroke ≤90mm
Compatible wire CU/AL
Air Pressure 0.5～1MPa
Power 10Kw
Power supply 3-Phase 380V/50Hz
Weight 11500kg
Dimension (L)2400×(W)1300×(H)1700mm
Application
Primarily used in new energy automobile motors, servo motors, generators, three-phase motors, pump motors, compressor motors, and household appliance motors. Our expertise includes stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, and auto resin impregnation for various stator sizes and slot shapes.
Our Service
We prioritize product quality and service to enhance your global market competitiveness. Whether you need machines, components, or OEM products, SMT Motor Equipment is your reliable partner. We welcome opportunities to establish long-term business relationships worldwide.
OEM/ODM
  • Innovative technical team provides complete solutions for unique requirements
  • Specialized after-sale team offers rapid door-to-door service
  • Extensive domestic and international service network
  • 24/7 customer support through multiple communication channels
Production Line Profile
SMT provides comprehensive motor manufacturing services including technical consulting, turn-key projects, cost evaluation, manufacturing know-how, and staff training for AC motors, DC motors, and BLDC motors.
