Automatic Copper Wire Stator Winding Inserting Machine for Submersible Pump Motor
Product Summary
Copper Wire Coil Stator Winding Inserting Machine For Pump Motor Winding And Inserting Copper Wire Coil Insertion Machine for Long Pump Motor Winding Inserting SMT-QX1200 Horizontal Motor Coil Inserting Machine specially designed for submersible pump / deep well pump motor winding insertion. ...
Product Custom Attributes
Name:
Copper Wire Coil Insertion Machine For Long Pump Motor Winding Inserting
Model:
SMT-QX1200
Stator O.D:
≤Φ210mm
Stack Height:
≤1200mm
Applicative Wire:
PVC / Cu Wires
Structure:
Horizontal
Highlight:
Copper Wire Stator Winding Inserting Machine
,Automatic Stator Winding Inserting Machine
,Submersible Pump Motor Coil Insertion Machine
Basic Properties
Place of Origin:
China
Brand Name:
SMT
Certification:
SGS / ISO 9001 / BV
Model Number:
QX1200
Trading Properties
Minimum Order Quantity:
1 Set
Price:
Price unit: USD; Price depends on configuration, design and customer special request, which can be negotiated later
Packaging Details:
Plastic wrapping film, vacuum package and plywood cases. The package size depends on actual machine size
Delivery Time:
50 workdays after advance payment
Payment Terms:
L/C,T/T
Supply Ability:
About 15 Set/Sets per 40 days
Product Description
Copper Wire Coil Stator Winding Inserting Machine For Pump Motor Winding And Inserting
Copper Wire Coil Insertion Machine for Long Pump Motor Winding Inserting SMT-QX1200

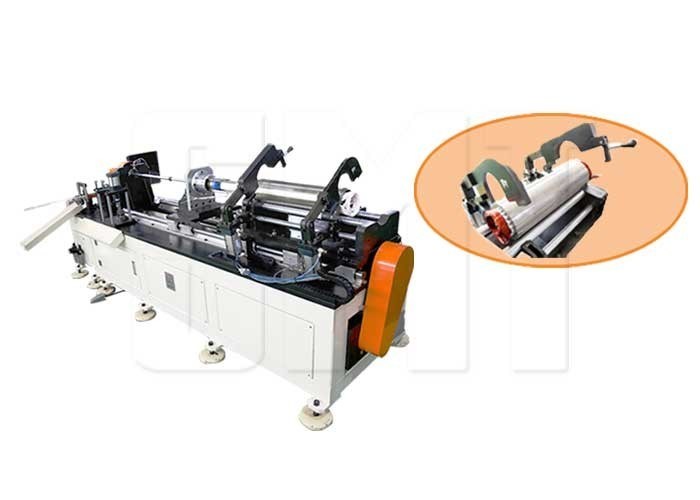

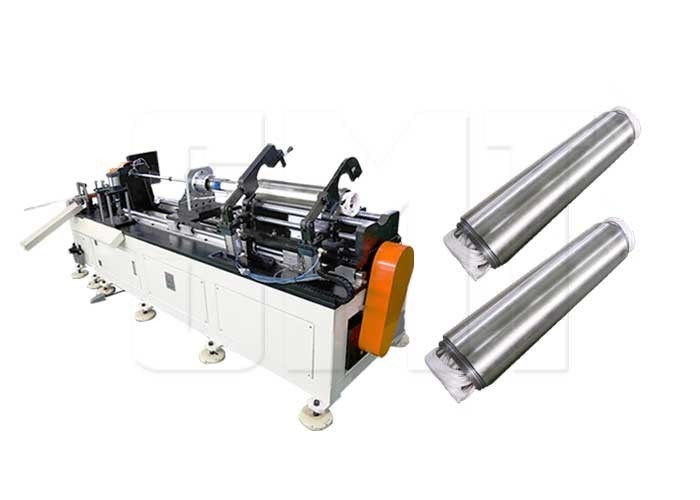

Horizontal Motor Coil Inserting Machine specially designed for submersible pump / deep well pump motor winding insertion. Combined with Wedge Paper Cutting and Forming Machine.
Horizontal Motor Coil Inserting Machine specially designed for submersible pump / deep well pump motor winding insertion. Combined with Wedge Paper Cutting and Forming Machine.
Technical Parameters
| Model | SMT-QX1200 |
|---|---|
| Stator I.D | ≤Φ40mm |
| Stator O.D | ≤Φ210mm |
| Stack height | ≤1200mm |
| Compatible wire type | Copper wire / PVC wire |
| Power | 5Kw |
| Power supply | 380V 50HZ |
| Air pressure | ≥0.6Mpa |
| Weight | ≈1200Kg |
| Dimension | (L)3350×(W)820×(H)1100mm |
Machine Description
The Copper Wire Coil Insertion Machine is used for inserting electric coils and wedge insulation to stator slots automatically in one operation. Operators manually transfer coils wound by winding machines to the coil inserting machine, along with the wedge papers.
Main Specifications
- Specialized for inserting coils of submersible pump motor stators
- Suitable for motor stators with large stack height and small inner diameter
- Automatically inserts both coil and wedge paper into stator slot in one operation
- Coil pushing is driven by servo motors for precise control
- Compatible with both copper wires and PVC wires
- Includes combined wedge paper cutting and forming machine
Services
We provide high-quality machines that are simple to operate and easy to maintain, available as single units or complete production lines. Our services include:
- Pre-sales technical discussions to address customer requirements
- Custom design solutions to meet specific needs
- One-year warranty with free replacement of defective parts
- Complimentary wearing parts included with delivery
- Prompt on-site after-sales support when needed
Applications
Our machines perform complete motor production processes including slot insulation insertion, coil winding, inserting, forming and lacing. Suitable for various motors used in:
- New energy automobiles
- Generators and water pumps
- Garden tools and fans
- Compressors and household appliances
- BLDC motors and reducers
