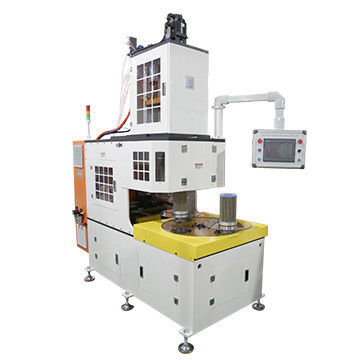

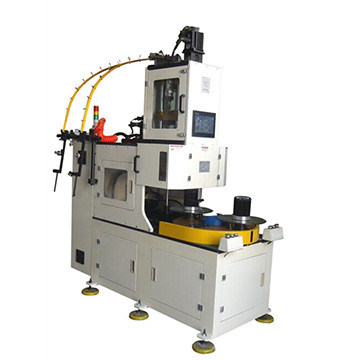

Full-Automatic Stator Winding Machine for 2 Poles Stator with Max Stack Height ≤150mm and ISO9001:2008 Certified
  • name

Full-Automatic Stator Winding Machine for 2 Poles Stator with Max Stack Height ≤150mm and ISO9001:2008 Certified

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden Case Suitable for Sea Transportation.
Delivery Period: 50-60 days for 1set
Payment Method: T/T,L/C
Supply Capacity: 1pcs/ 50-60 days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO9001/SGS/CE
Model Number
SMT-LR150
Name:
Automatic Coil Winding Machine For AC Motor Induction Motor
Wire Speed:
≤2000r/min
Transfer Number:
2pcs
Condition:
New
Warranty:
12 Months
Winding Head:
1pcs
Max Stack Height:
≤150mm
Application:
Stator Production
Automatic Grade:
Full-Automatic
OEM:
Yes
Highlight:

2 Poles Stator Winding Machine

,

Max Stack Height Stator Winding Machine

,

ISO9001 Certified Coil Winding Machine

Product Description
Automatic Coil Winding Machine For AC Motor Induction Motor
This machine is primarily designed for winding 2-pole stators, completing one stator per cycle to significantly enhance production efficiency. It features automatic loading and mold removal to reduce labor intensity. The winding process supports tapping (up to 5 times) and clamping functions, with adjustable fly fork lever stroke and pivot angle. The frame is constructed from total aluminum alloy with anodic oxidation treatment and features imported acrylic protection. Electrical control is managed by PLC, display, and frequency converter for safe and reliable operation.
Machine Main Function and Characteristics
  • Double-station automatic vertical winding machine with two-station turntable structure
  • Servo system for rotation and index transfer
  • Precisely winds coils onto forklike flywheel for efficient transfer to coil inserter
  • Includes one set winding tooling with three vertical winding forms
  • Full tooling change capability (approximately 15 minutes)
  • Servo-controlled main spindle with ±1 turn accuracy
  • PLC control for turn number, winding speed, tooling sunk height/speed, and winding direction
  • Servo-controlled X/Y spindle wire hooker and cutter for adjustable bridge/lead wire length
  • Supports simultaneous winding of two wires
  • Dynamic display of turns, failure causes, and position self-check
  • Automatic stop when copper wire runs out
  • Minimal vibration and noise operation
Main Technical Data
Model LR150
Winding Head 1pc
Wire Diameter 0.3-1.0mm
Stack height ≤150mm
Unload speed ≤2000r/min
Winding precision ±0turn
Air pressure ≥0.6MPa
Power supply 380V/50/60Hz 8Kw
MOQ 1set Automatic Coil Winding Machine
Certification ISO9001:2008; SGS
Application
Suitable for winding 2-pole, 4-pole, and 6-pole coils.
OEM/ODM Profile
Our company leverages experienced engineers, skilled professionals, advanced equipment, and strict process control to provide optimized electric motor manufacturing solutions. Our machines are exported worldwide and renowned for their durability, reliability, competitive pricing, and excellent after-sales service.
Production Line Profile
We offer comprehensive technical consulting and turn-key project services for AC motor, DC motor, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, staff training, and complete project implementation.
