|Place of Origin:||China|
|Certification:||ISO / SGS Audit|
|Minimum Order Quantity:||1pcs|
|Packaging Details:||Plywood Box With Sealing|
|Delivery Time:||6 - 10 weeks|
|Payment Terms:||T/T, L/C|
|Supply Ability:||1pcs / 6 - 10 weeks|
|Name:||CNC Servo Motor Stator Coil Insertion Machine / Coil Inserting Machine||Model:||KW300|
|Stator I.D.:||110-210mm||Stator O.D.:||175-300mm|
|Height Of Edge Folded:||3-10mm||Power Supply:||380V/50/60Hz 3Kw|
|Tooling Travel:||≤70mm||Machine Dimension:||(L)1100*(W)2010*(H)2020mm|
motor winding equipment,
induction motor winding machine

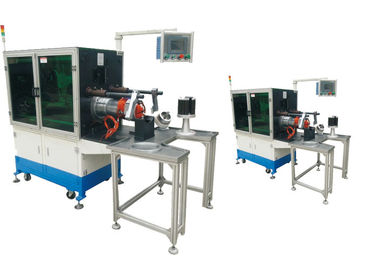

SGS Audit Winding Inserting Machine , CNC Servo Motor Stator Coil Insertion Machine SMT-KW300
1. More suitable for winding the stator coil embedded in a longer line, after a good embedded
coil windings arranged in neat rows.
2. Coil winding wire is not easy to injury, the machine uses a needle to thread embedded insulating paper
and disposable embedded in the stator coil, high-speed embedded line efficiency.
3. The machine has a manual, single-step, automatic three kinds of work, to facilitate the operator debugging
and automatic operation.
4. The machine uses a touch screen display, elegant, easy to operate.
(1) Main Technical Features
|Appropriate Wire Diameter||0.2-1.2mm|
|Slot number range||8-48slot|
|Power Supply||380V/50/60Hz 4Kw|
|MOQ||1 set Motor Wire Inserting Machine|
The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
(3) Our Service
Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.
We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.
Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
(6) About Us
Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
Contact Person: Larry
