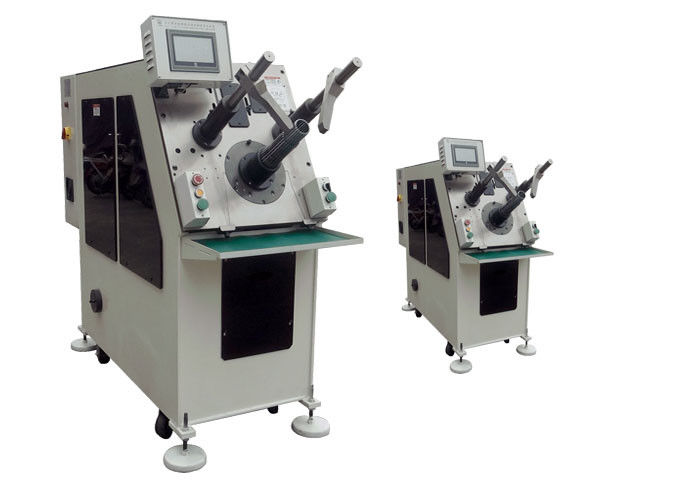

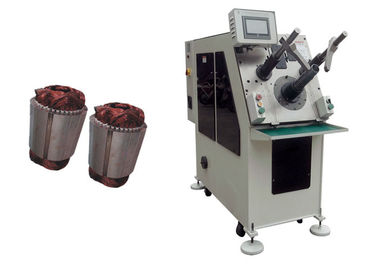

Small Motor Stator Winding Inserting Machine Automatic Coil Inserting Machine

Small Motor Stator Winding Inserting Machine Automatic Coil Inserting Machine

  • Small Motor Stator Winding Inserting Machine Automatic Coil Inserting Machine
  • Small Motor Stator Winding Inserting Machine Automatic Coil Inserting Machine
Small Motor Stator Winding Inserting Machine Automatic Coil Inserting Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / SGS Audit
Model Number: SMT-k90
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Plywood Box With Plastic Bag
Delivery Time: 7 - 10 weeks
Payment Terms: T/T, L/C
Supply Ability: 1pcs / 7 - 10 weeks
Contact Now
Detailed Product Description
Name: Small Motor Automatic Coil Inserting Machine For Stator / Coil Inserting Machine Model: K90
Stator I.D.: 20-100mm Stator O.D.: ≤160mm
Tooling Travel: 3-10mm Power Supply: ≤70mm
Condition: New Warranty: 12 Months
High Light:

Coil Insertion Machine

,

Wedge Inserting Machine

,

Motor Automatic Coil Inserting Machine

Motor Automatic Coil Inserting Machine for Stator / Coil Inserting Machine SMT - K90





The machine insert coil and wedge simultaneously, coil insertion is controlled by servo motor system, and wedge insertion by variable frequency motor.
It is controlled by HMI, and machine can diagnose breakdown automatically.
This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
The wedge feeding is by stepping motor,feeding length, cutting, forming, inserting slot number could be set.
Both copper wire and aluminium wire are applicable.
Production capacity ≤25s/set (exclude theman-hours for auxiliary work)
Primary qualification rate for copper wire≥98.5%, after rework, the rate ≥99.5%



Automatic Induction Motor Stator Coil Winding Insertion Machine

Quick Detail:

1.Automatically insert the winding into stator slot.
2.This machine is used for induction motor stator.
3.The winding/coil and wedge/top cover is inserted simultaneously.
4. Simple operation, low noise, fast speed and high automaticity.
5. PLC and touch screen control.

Description:

This machine is suitable for inserting coil and wedge into stator by servo system; This type of Stator Winding Inserting Machine can insert coil and wedge or coil and wedge in the mid of slot into stator at a time; wedge feeding is to be done bt stepping motor,and coil and wedge inserting is by servo system; different parameter could be set in human-machine interface; the speed and feeding mode is acquirable according to different slot filling rate and different kind of wire; different size stator production can be achieved by changing tooling; especially apply to micro induction motors such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.

Techanical data

Max stator O.D 160mm
Stator I.D 20~100mm
Max stator stack length 120mm
Slot number range 8~48 slots
Max winding feeding rate 80%
Appropriate wire Copper wire/Aluminum wire
Power source 380V/50Hz
Air source 0.5-0.8MPa
Machine productivity 400pcs/ 8 hours
Machine Dimension 1800mm × 650mm × 1700 mm
Weight about 1000Kg

Application:

This machine can insert the winding/coil and the wedge/top cover into the stator slot simultaneously. This machine is used for induction motor stator which meet the specification in the below table.

Competitive advantages:

Simple operation, fast speed and high automation, the wedge and winding is inserted simultaneously. Labor cost saving. PLC and touch screen control.


Machine main function and characteristic
l. The machine inserts coil and wedge simultaneously, coil insertion is controlled by servo motor system , and wedge insertion by variable frequency motor.
2. It is controlled by HMI, and machine can diagnose breakdown automatically.
3. This machine is suitable for Polyester Film wedge roll material with fixed thickness and fixed width (width and thickness dimension is provided by customer)
4. The wedge feeding is by stepping motor. feeding length, cutting, forming, inserting slot number could be set.
5. Both copper wire and aluminium wire are appliable.
6. Production capacity ≤25s/set (exclude the man-hours for auxiliary work)
Main components
PLC: Mitsubishi
Servo motor:Mitsubishi
Wedge feeding motor: Sihai
Touchscreen:Tongtai
Cylinder: SMC
Sensor:Autonics
Switch and Button: Schneider
Other electric parts: Delixi/Schneider

Automatic Induction Motor Stator Winding Inserting Machine
