|Name:||Hydraulic System Driven Automatic Stator Coil Forming Machine||Model:||ZJ160|
|Stator I.D.:||31 -101mm||Stator O.D.:||≤161mm|
|Machine Size:||Middle Size||Automation Type:||Full Automation|
Pre - Forming Machine,
electric motor winding equipment

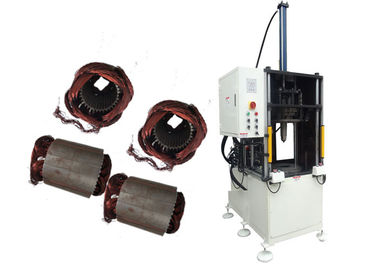

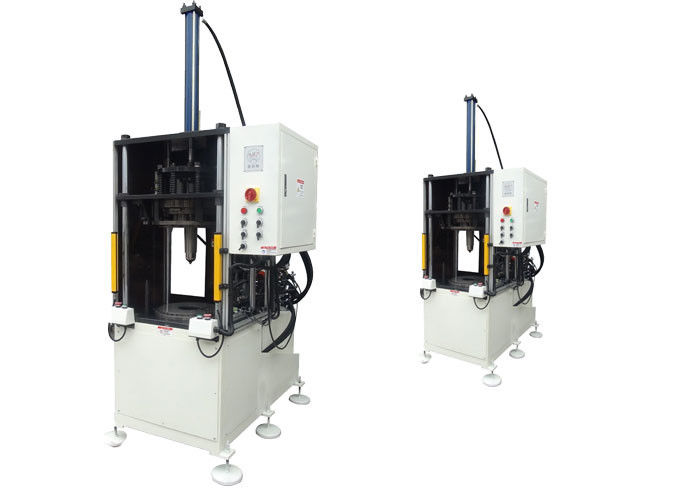

SMT - ZJ160 Coil Forming Machine Hydraulic System Driven Automatic Stator
Stator Coil Final Forming Machine is used for stator coil final forming, it is driven by the hydraulic system, controlled by the PLC. Its tooling design adopts flexible principles of inner expansion. The outer wrapping and edge forming form the stator winding. It can ensure appropriate winding outside dimension after lacing. It is of highly efficiency and qualified forming. High technology, stable performance and reasonable price.
Required information for quotation: stator drawing before forming and after forming, including stator O.D, stator I.D, stator stack height, and end coil dimension.
(1) Main Technical Features
|Stator I.D.||31 -101mm|
|Displacement of cylinder||≤20F|
|MOQ||1 Set Mid - Forming Machine|
|Power Supply||380V/50/60Hz 3.75Kw|
The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.
Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.
We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.
(3) Machine Main Characteristic
This machine adopts whole hydraulic system and PCL program.
This machine can adjust the forming stack length by changing washer.
Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.
Production capacity ≤13s/set (exclude loading/unloading time)
Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%
This machine adopts safety grating protection system. Operator need to stand when operating.
Machine adopts two hands simultaneously start button to ensure safety.
