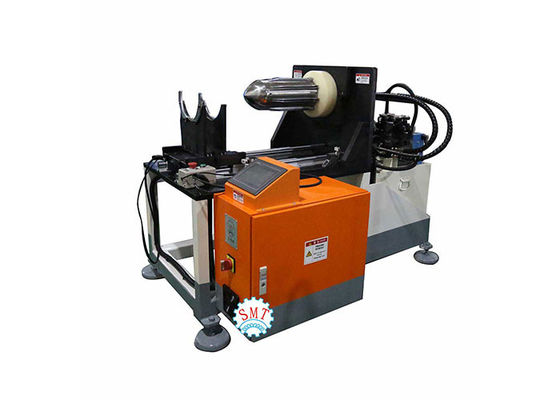

Stator Coil Wedge Expanding Machine SMT - KZ300 3726 X 1251 X 2111mm

Stator coil shaping machine middle forming machine

Adopt horizontal structure, pneumatic system as main power; stator with same slot width and internal diameter can share one tooling, stroke of both ends of expanding blades is synchronous, no need two times expending, and expending blade stroke can be adjusted as per requirement; footswitch controls on/off, easy operation, and no damage to wedge, insulation paper and coil, wedge is still at right position after expending.


(1) Main Technical Date


Model KZ300
Stack height 70- 250mm
Stator I.D 110-210mm
Stator O.D ≤300mm
Displacement of cylinder 40L
Power supply 380V/50/60Hz 4.2Kw
Machine weight About 2300kg
Machine dimension (LxWxH) L3726x W1251 x H2111mm


(2) Application

The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.

Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.

(3) Machine Main Characteristic


This machine adopts whole hydraulic system and PCL program.

This machine can adjust the forming stack length by changing washer.

Both slot paper and wedge should not be damaged or turned over. The stator should not be deformation or stator lamination should not be upward. There is no wire enamel broken.

Production capacity ≤13s/set (exclude loading/unloading time)

Primary qualification rate ≥99.5%, after rework, the rate ≥99.9%

This machine adopts safety grating protection system. Operator need to stand when operating.

Machine adopts two hands simultaneously start button to ensure safety.
