Welding Copper Wire Electric Motor Winding Equipment  For Mixer Motor

Welding Copper Wire Electric Motor Winding Equipment For Mixer Motor

  • High Light

    Spot Welding Machine

    ,

    Commutator Fusing Machine

  • Name
    Welding The Copper Wire Commutator Fusing Machine
  • Power Supply
    400VAC, 50 Hz – 60 Amp
  • Min.Temperature
    15°C
  • Weight
    930Kg
  • Color
    Orange
  • Cooled Transformer
    20 Kva
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT- K3220
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Packed with vacuum film in plywood case. Or, we can do it as your order.
  • Delivery Time
    43 - 65 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 43 - 65 days

Welding Copper Wire Electric Motor Winding Equipment For Mixer Motor

Welding Copper Wire Electric Motor Winding Equipment For Mixer Motor

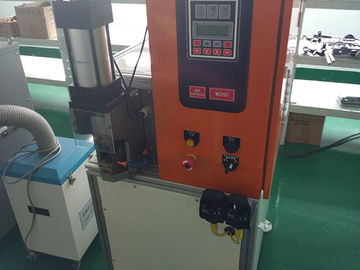

This type of Commutator hot staking machine is used for commutator hook welding. It is automatically indexing, automatically welding,you only need to load and unload the armature. Welding current can be adjusted according to different wire diameter. Easy operation and adjustment.
If your armature is beyond the range of our standard machine capacitiy, we could modify our machine according to your armature dimension.



(1) Product General Information



Brand Name: SMT
Model Number: K3220
Certification: SGS/ISO9001
Place of Origin: China



Product Name Stator Lead Wire Tube Fusing Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available





(2) Description

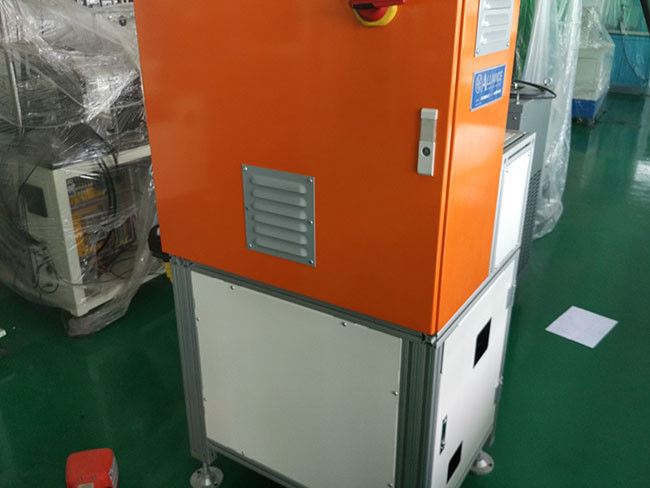

1.Machine, electrical cabinet and disconnect mounted to aluminum extrusion table.
2.Heavy duty construction utilizing SMT K-Head design.
3.SMT machine enamel paint unless otherwise quoted.
4.20 kva water cooled transformer.
5.400VAC, 50 Hz – 60 Amp input required.
7.Control of squeeze time (prior to fuse), upslope time, fuse time, fuse current, cool time, repeats, hold time and force of head during fuse.
8.Capability to store and recall up to fifty (50) different fuse schedules.


(3) Patented Tube Fusing Technology



In tube fusing, traditional connectors are made redundant by a simple and inexpensive tube which captures the wires to be connected. Resistively heated fusing electrodes apply the necessary pressure and heat to the tube/wire bundle to make a reliable connection. These machines are versatile for most any application including fusing magnet wires, Litz.wire and/or insulated leads within a tube terminal.



(4) Eliminate Stripping and Brazing



This patented technology eliminates the need for an operator to strip the magnet wire from the leads prior to fusing the lead bundle. Capable of fusing up to 150*18AWG(1.0mm) wires in parallel, the heat of the fusing operation burns off the wire enamel while the tin from the tube cleans the area to be connected. The force of the head combined with the controlled heating of the electrode creates a reliable connection while minimizing manual operations.



(5) Thermal Crimp Fusing Technology



With the patented thermal crimp technology, the connector is automatically made from a strip of tinned copper material. This connector is then presented to the operator for placement of the magnet wire and/or lead wire. Once fused, excess wire is trimmed from the connector resulting in the smallest possible package with the highest quality connection.

Welding Copper Wire Electric Motor Winding Equipment  For Mixer Motor 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
