Stator Core Lamination Automatic Motor Winding Machine For Elevator Traction

Stator Core Lamination Automatic Motor Winding Machine For Elevator Traction

1. We have been approved by ISO 9001 certificate and manage the factory thoroughly according to the management system.
2. The production and marketing system not only improves the working efficiency but also assures the quality of product.
3. Our Motor Cores are equipped with a large amount of online test instruments so that they can ensure and improve the quality of product of product to take a leading position among the above products at home and reach the international standard.

Prodcution Process: Stamping Stator: OD 450mm ID 344mm Stator slot number: 72 slots Stacking: Welding

1. Main Technical Information Of Our Product:

2. Product Description

3. Our Service

4. Competitive Advantage:

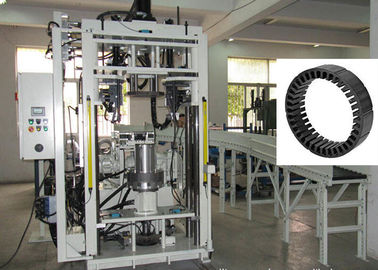

Four cleating heads with expanding mandrel for multiple cleating of stator lamination.

1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. Customer specified color machine enamel paint.
4. Self-contained hydraulic power pack.
5. Allen Bradley Programmable Controls.
6. Slide in/out expanding mandrel.
7. Guarded for operator protection.
8. Maximum stack height 4 inches, 100mm.
9. Minimum stack height ½ inch, 12mm.
10. Maximum stator O.D. 8 inches, 200mm.
11. Hydraulic feed rate control.
12. Roll form cleating principle.
13. Hydraulic compression of stack.
14. Four (4) strip steel dereelers included.
15. Number of cleats, 4 - Standard.
16. Fully automatic cycle.

5. About Our Factory:

Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
