Stator Core Assembly Machine , Refrigerator Fan Alternatorl Rotor Stator Laminated Cores Machine

Stator Core Assembly Machine , Refrigerator Fan Alternatorl Rotor Stator Laminated Cores Machine

  • High Light

    Progressive Stamping Machine

    ,

    automatic motor winding machine

  • Name
    Refrigerator Fan Alternatorl Rotor Stator Laminated Cores Machine
  • Maximum Stator O.D.
    8 Inches, 200mm.
  • Automatic
    Full-Automatic
  • Usage
    Stator
  • Stator Slot Number
    72
  • Stacking
    Welding
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO/SGS Factory Inspection
  • Model Number
    SMT-IC-4
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Wood Box As Your Asking.
  • Delivery Time
    33 - 53days
  • Payment Terms
    L/C, T/T
  • Supply Ability
    1pcs 35-49 days

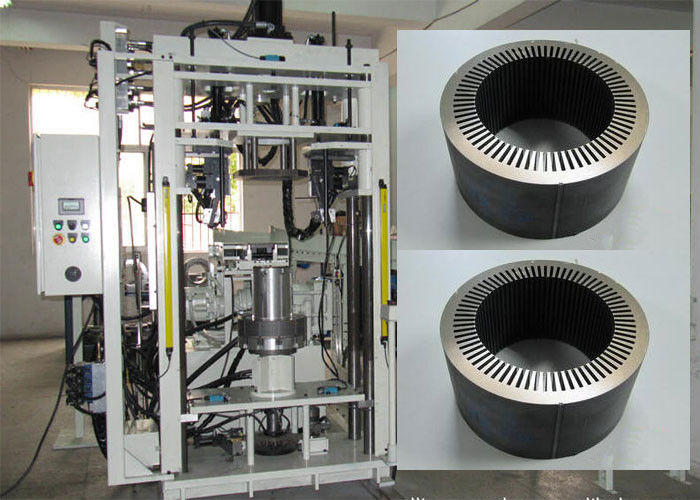

Stator Core Assembly Machine , Refrigerator Fan Alternatorl Rotor Stator Laminated Cores Machine

Stator Core Assembly Machine , Refrigerator Fan Alternatorl Rotor Stator Laminated Cores Machine





1. We have been approved by ISO 9001 certificate and manage the factory thoroughly according to the management system.
2. The production and marketing system not only improves the working efficiency but also assures the quality of product.
3. Our Motor Cores are equipped with a large amount of online test instruments so that they can ensure and improve the quality of product of product to take a leading position among the above products at home and reach the international standard.



Application:We are professional manufacturer of OEM kinds of molds and stamping parts for over 10 years. The main products are stamping die, progressive die, punching die and motor core, laminated iron core, laminated stator and rotor etc. Professional customization and excellent talent team are our advantage.



1. Main Technical Information Of Our Product:



Brand Name: SMT
Model Number: IC-4
Certification: CE/SGS/BV/ISO9001
Place of Origin: China



2. Product Description



Product Name Stator lamination Cleating Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



3. Our Service



Minimum Order Quantity: 1 set
Price: TBD
Payment Terms: T/T
Delivery Time: 45 workdays after receiving downpayment
Packaging Details: Packed with vacuum film in plywood case



4. Competitive Advantage:


Four cleating heads with expanding mandrel for multiple cleating of stator lamination.

1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. Customer specified color machine enamel paint.
4. Self-contained hydraulic power pack.
5. Allen Bradley Programmable Controls.
6. Slide in/out expanding mandrel.
7. Guarded for operator protection.
8. Maximum stack height 4 inches, 100mm.
9. Minimum stack height ½ inch, 12mm.
10. Maximum stator O.D. 8 inches, 200mm.
11. Hydraulic feed rate control.
12. Roll form cleating principle.
13. Hydraulic compression of stack.
14. Four (4) strip steel dereelers included.
15. Number of cleats, 4 - Standard.
16. Fully automatic cycle.

Stator Core Assembly Machine , Refrigerator Fan Alternatorl Rotor Stator Laminated Cores Machine 0

5. About Our Factory:



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
