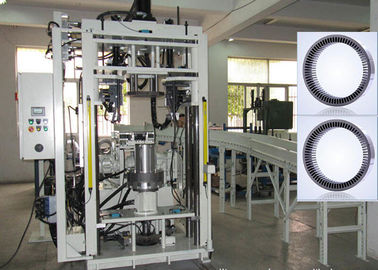

Electric Motor Winding Equipment of Stator Cleat / Stator Cleat Presses Machine

Electric Motor Winding Equipment of Stator Cleat / Stator Cleat Presses Machine

  • Electric Motor Winding Equipment  of Stator Cleat  / Stator Cleat Presses Machine
Electric Motor Winding Equipment  of Stator Cleat  / Stator Cleat Presses Machine
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO/SGS Factory Inspection
Model Number: SMT-IC-4
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: Negotiable
Packaging Details: Wood Box As Your Asking.
Delivery Time: 44-66 days
Payment Terms: L/C, T/T
Supply Ability: 1pcs 44-66 days
Contact Now
Detailed Product Description
Name: Stator Rotor Core Stamping Machine / Stator Core Assembly Machine Maximum Stator O.D.: 8 Inches, 200mm.
Automatic: Full-Automatic Usage: Stator
Stator Slot Number: 70 Stacking: Welding
Our Service: Oversea Service Is Ok Quality Guarantee Period: 10 Months
High Light:

automatic motor winding machine

,

motor winding equipment

Electric Motor Winding Equipment of Stator Cleat / Stator Cleat Presses Machine





The electric motor rotor core is made up of a certain number of laminations stacking together. It is mounted inside the electric motor together with other components such as rare-earth permanent magnets, and it matches with stator core to be the key part of electric motor.
The product has wide applications and is used in AC and DC servo motors, linear motor, shaded pole motor, air conditioner motor, windscreen wiper motor and tubular motor, etc. We deeply understand the precious dimensions of the product are vital to the performance of electric motor. Therefore, we are fitted with updated equipment and efficient management to ensure the quality.



1. Main Technical Information Of Our Product:



Brand Name: SMT
Model Number: IC-4
Certification: CE/SGS/BV/ISO9001
Place of Origin: China



2. Product Description



Product Name Stator lamination Cleating Machine Application Electric motor stator production
Status New Paint On request
Warranty time One year after machine(s) arrive in customer’s plant Service Overseas service center available



3. Our Service



Minimum Order Quantity: 1 set
Price: TBD
Payment Terms: T/T
Delivery Time: 45 workdays after receiving downpayment
Packaging Details: Packed with vacuum film in plywood case



4. Competitive Advantage:


Four cleating heads with expanding mandrel for multiple cleating of stator lamination.

1. Basic machine complete with controls, less tooling.
2. Heavy duty construction.
3. Customer specified color machine enamel paint.
4. Self-contained hydraulic power pack.
5. Allen Bradley Programmable Controls.
6. Slide in/out expanding mandrel.
7. Guarded for operator protection.
8. Maximum stack height 4 inches, 100mm.
9. Minimum stack height ½ inch, 12mm.
10. Maximum stator O.D. 8 inches, 200mm.
11. Hydraulic feed rate control.
12. Roll form cleating principle.
13. Hydraulic compression of stack.
14. Four (4) strip steel dereelers included.
15. Number of cleats, 4 - Standard.
16. Fully automatic cycle.



5. About Our Factory:



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
