|Place of Origin:||China|
|Minimum Order Quantity:||1 Set|
|Packaging Details:||Wooden Case Suitable for Sea Transportation.|
|Delivery Time:||45 - 55 days for 1set|
|Payment Terms:||T/T, L/C|
|Supply Ability:||1pcs/ 45 - 55 days|
|Name:||Automatic Stator Coil Winding Machine AC / DC Electrical Series Motor||Wire Speed:||≤3000r/min|
|Warranty:||12 Months||Winding Head:||1-2pcs|
|Max Stack Height:||≤70mm||Mould Life:||>1,000,000 Shots|
ceiling fan coil winding machine,
electric motor coil winding machine,
Multi Pole Stator Winding Machine

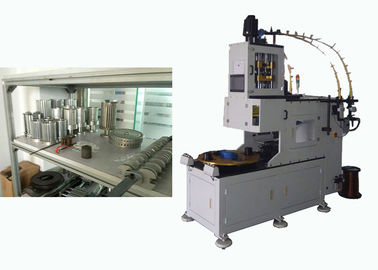

Muti-Pole BLDC Motor Stator Coil Winding Machine ≥0.6pa Air Pressure
This machine mainly used for the 2 poles stator’s winding. One stator will be winded in each cycle, greatly improving production efficiency, automatic loading and removing mould, to reduce artificial labor intensity. Winding process can realize tapping(5 times), clamping functions, the stroke and pivot angle of fly fork lever stroke can be adjusted within a certain range according to need. Total aluminum alloy(anodic oxidation treatment) frame with imported acrylic protection. Electric is mainly controlled by PLC, displayer, and frequency converter. Safe and reliable setting, display.
(1) Main Technical Data
|SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200||SLR70||QLR70|
|Winding Head||1 1 1 1||2||4|
|Wire Diameter(mm)||0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2||0.2~1.0||0.2~1.0|
|Unload Speed||≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min||3000||3000|
≤80mm ≤120mm ≤150mm ≤230mm
|Winding Precision||+ 0 + 0 + 0 + 0||+ 0||+ 0|
|Power Supply||380v/50/60HZ 8Kw 8Kw 9Kw||7Kw||7Kw|
|Air Pressure||≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa||≥0.6pa||≥0.6pa|
|Weight||≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg||≈1950Kg||≈2300Kg|
|180×110×200 180×120×220 180×130×230 220×180×250||180×130×205||135×100×180|
This machine is suitable for 2 poles, 4 poles and 6poles coils winding.
(3) Machine main function and characteristic

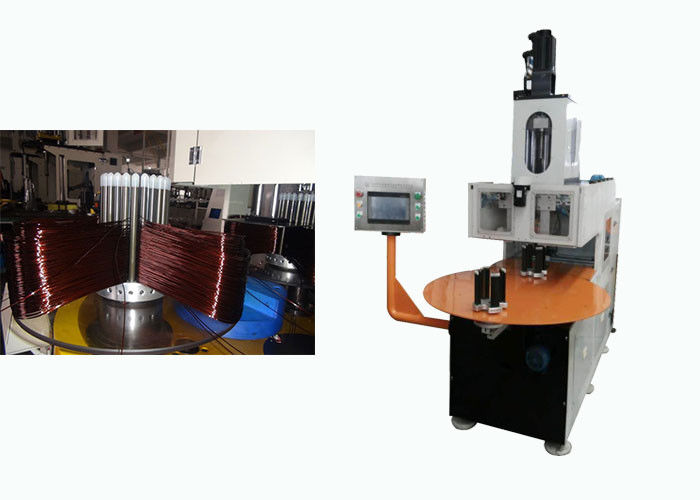

Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
(4) OEM/ODM Profile
Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.
(5) Production Line Profile
With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.
6) About Our Factory
Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
