|Name:||Electric Automatic Stator Winding Machine With Big Frame Protection||Color:||White|
|Transfer Number:||2-6pcs||Power Supply:||220v/50/60Hz 3Kw|
|Weight:||1000kg||Dimension:||2300x 2200 X 2000mm|
|Winding Head:||8pcs||Air Pressure:||0.4-0.6MPa|
Auto Coil Winding Machine,
Automatic Ceiling Fan Winding Machine

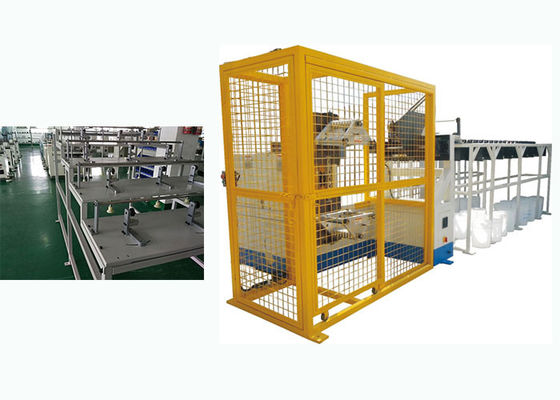

Electric Automatic Stator Winding Machine With Big Frame Protection SMT - DR1200
This machine has two winding heads with four working station. The main phase and auxiliary phase can be wound simultaneously. It is suitbale for high production capacity, high slot filling rate, small slot opening stator coil winding. Different winding mode can be selected in the touch screen, like auto skip, auto cutting and auto indexing.
(1) Main Technical Date
|Wire diameter||0.4 - 1.5mm|
|Paralle Wire No.||≤ 40pieces|
|Air Pressure||0.4 -0- 0.6 MPa|
|Power supply||220V/ 50/60Hz, 3kw|
|Machine weight||About 1100kg|
|Machine dimension (LxWxH)||2300x 2200 x 2000mm|
This machine is suitable for 2 poles, 4 poles coils winding.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
