Coil Inserting Automatic Stator Winding Machine AC  DC Electric Drawing Type

Coil Inserting Automatic Stator Winding Machine AC DC Electric Drawing Type

  • High Light

    automatic motor winding machine

    ,

    induction motor winding machine

  • Name
    Motor Stator Coil Inserting Machine / AC / DC Electric Drawing Type Coil Inserting
  • Stator I.D.
    110-210mm
  • Stator O.D.
    ≤260mm
  • Core Length
    ≤250mm
  • Slot Number Range
    24-48 Slots
  • Automatic Grade
    Semiautomatic
  • Demoulding
    Pull Core
  • Warranty
    12 Months
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO / SGS Audit
  • Model Number
    SMT-QX10
  • Minimum Order Quantity
    1pcs
  • Price
    Negotiable
  • Packaging Details
    Plywood Box With Sealing.
  • Delivery Time
    45-63 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 45-63 days

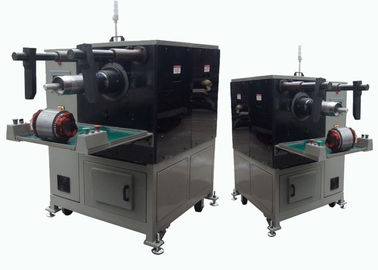

Coil Inserting Automatic Stator Winding Machine AC DC Electric Drawing Type

Coil Inserting Automatic Stator Winding Machine AC DC Electric Drawing Type





1. different parameter could be set in human-machine interface;
2. the speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire;
3. different sizes stator production can be achieved by changing tooling;
4. especially apply to micro induction motor such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.



(1) Main Technical Features



Model SMT-QX10
Stator I.D 110-210mm
Stator O.D ≤260mm
Core Length ≤250mm
Tooling stroke ≤90mm
Compatible wire CU/AL
Slot number range 24-48 slots
Power supply 380V/50/60Hz 6.5Kw
Weight 1160kg
Dimension (L)2370×(W)1260×(H)1710mm



(2) Application



The products are mainly applied in new energy automobile motor, servo motor, generator, three-phase motor, pump motor, compressor motor, household appliance motor and other induction motors. As a world leader, we have obvious advantages in stator and rotor core assembly, slot insulation, auto winding, auto inserting, auto fusing, auto resin impregnation and other motor production technology for different sizes and slot shape of stator.


(3) Our Service



Focusing on international trading, we have placed our priority on both product quality and service, which are the key elements that make your brand more competitive in the global market. If you are looking for machines, components, or OEM products, SMT motor Equipment will be your most reliable partner.

We are ready to establish a long business relationship with your esteemed company as a supplier, a partner and a friend. We warmly welcome you from worldwide.



(4) OEM/ODM



Innovational technical team provides perfect complete technical solutions, to satisfy every customer’s unique requirement;
Specialized after-sale team and engineers offer superior quality, rapid after-sale service door to door, to solve customer’s all after-sale problems;
Wide spreaded domestic after-sale service service network stations and overseas agencies ensure of powerful after-sale service;
Multi communication methods and full time customer service personnel dispel customer’s after-sale scruples 24 hours.



(5) Production Line Profile



With good service, professional team and reliable quality, SMT provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.

Coil Inserting Automatic Stator Winding Machine AC  DC Electric Drawing Type 0

(6) About Us



Suzhou Smart motor Equipment Manufacturing Co.,Ltd is one of the high-tech key enterprises which specialize in designing, producing and selling motor manufacturing equipments in China. The company now has nearly 150 employees, including more than 30 engineers and technicians, with the building area about 20,000 square meters and a hundred sets of advanced production and test equipments. It is now qualified for designing and manufacturing full production line (starts from coil winding to final forming of a stator) for AC motors such as home appliance motor, industrial medium and small motors, pump motor, rolling door motor and automobile motor etc. In 2012, SMT passed the certification of ISO9001:2000 Quality Management System.
