|Name:||Automatic Ceiling Fan Winding Machine /Electric Filament Winding Machine||Flier:||200mm|
|Transfer Number:||2-6pcs||Power Supply:||220v/50/60Hz 3Kw|
|Winding Head:||8pcs||Air Pressure:||0.4-0.7MPa|
Auto Coil Winding Machine,
Automatic Ceiling Fan Winding Machine

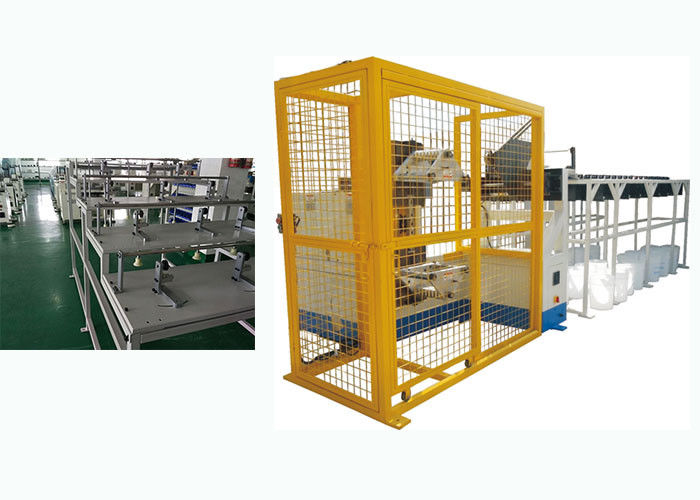

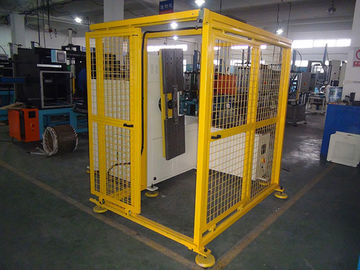

SMT - DR1200 Electric Motor Winding Machine , Automatic Ceiling Fan Winding Machine
Ceiling Fan Coil Winding Machine is suitable for winding ceiling fan stator, external armature such as frequency conversion alternator and generator armature.
Ceiling Fan Coil Winding Machine has two working stations. Controlled by micro computer, it could achieve auto winding, auto array, auto indexing; array and indexing is controlled by stepping motor, winding is controlled by frequency converting motor, turn number could be accurate up to 0.1 round.
(1) Main Technical Date
|Wire diameter||0.4 - 1.5mm|
|Paralle Wire No.||≤ 40pieces|
|Air Pressure||0.4 -0- 0.6 MPa|
|Power supply||220V/ 50/60Hz, 3kw|
|Machine weight||About 1100kg|
|Machine dimension (LxWxH)||2300x 2200 x 2000mm|
This machine is suitable for 2 poles, 4 poles coils winding.
(3) Machine main function and characteristic
Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.
