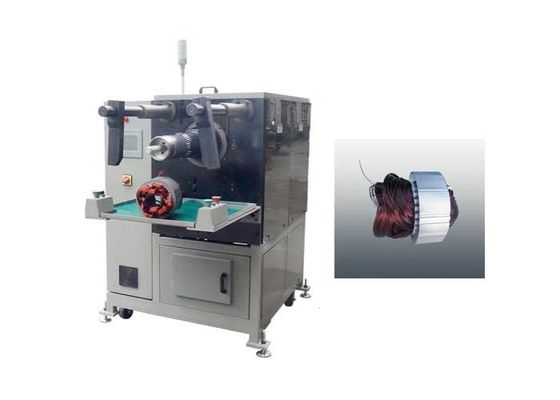

Automatic Wedge Inserting Machine for Electric Motors Winding Inserting

Automatic Wedge Inserting Machine for Electric Motors Winding Inserting

  • Automatic Wedge Inserting Machine for Electric Motors Winding Inserting
Automatic Wedge Inserting Machine for Electric Motors Winding Inserting
Product Details:
Place of Origin: China
Brand Name: SMT
Certification: ISO / BV / SGS
Model Number: QX08
Payment & Shipping Terms:
Minimum Order Quantity: 1 Set
Price: Negotiable
Packaging Details: Coil Inserting Machine is packaged with plywood cases. Actual size is according to the machine and other parts.
Delivery Time: 30-40 days after placing order
Supply Ability: 20 Set/Sets per Month
Contact Now
Detailed Product Description
Name: Automatic Inserting Machine For Electric Motors Winding Inserting Model: SMT-QX08
Stator I.D: Φ60~Φ150mm Stator O.D: ≤Φ210mm
Tooling Travel: ≤90mm Compatible Wire: Cu / AL
High Light:

Coil Insertion Machine


Wedge Inserting Machine

Automatic Inserting Machine for Electric Motors Winding Inserting SMT-QX08



It's euqipped with modular tooling so it's very easy to change the tooling when change product model. The changeover time is less than 10 minutes.


(1) Technical Parameters


Model SMT-QX08
Stator I.D Φ60~Φ150mm
Stator O.D ≤Φ210mm
Stack height ≤190mm
Tooling travel ≤90mm
Compatible wire Cu / AL
Slot number range 24~48 slot
Power supply 380V/50/60Hz 5Kw
Weight ≈1050Kg
Dimension (L)2380×(W)1180×(H)1700mm


(2) Brief Instruction of Machine


Machine "Automatic Inserting Machine for Electric Motors Winding Inserting" is used for inserting electric coils and wedge insulation to stator slots automatically at one time. After finish coils winding in winding machine, the coils will be in transfer cup orderly. Operators just put the transfer cup with coils into the inserting tooling and start the inserting machine, which will form, cut and insert wedge paper together with coils automatically.

Operators need to stand when operating.


(3) Main Specifications


1. Tooling changeover time is less than 10 minutes;

2. It can insert the coil and wedge into stator slot automatically at a time;

3. Winding and wedge inserting is driven by servo motors;

4. Wedge feeding is driven by stepper motor;

5. Different parameters could be set in human-machine interface;

6. The speed and feeding mode is acquirable according to different slot filling rates and different kinds of wire;

7. Different sizes stator production can be done by changing tooling;

8. Especially apply to micro induction motor such as air conditioner motor, washing machine motor, compression motor, fan motor, generator and pump motor.


(4) Services


We focus on developing and producing machines for different induction motors production, such as Winding machine, Coil Inserting Machine, etc.

Design and manufacturing are standard except customer has special request. For example, shape design, allocation and colour,etc. can be specilized. Besides, we can help to arrange the layout of machines in customer site when necessary.

Our engineers will provide customers with professional technical support. Within one year warranty period, some support and parts need to be replaced will be for free.

Overseas after-service is also available. If customer needs our help, our after-sales engineers will be at customer's site within the shortest time.

We are in a safe, professional and efficient service concept of "wisdom and humanity towards the direction of development, technology and the world simultaneously with the progress", to meet different needs of customers to create a brilliant career.


(5) Production Line Service


With good service, professional team and reliable quality, SMT provide customer with different kinds of equipments for various motors production. It can be one set machine or the whole prodcution line from winding process to final forming process. So especially for customer who wants the whole production line, we can provide manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training, even complete turn-key project.

Automatic Wedge Inserting Machine for Electric Motors Winding Inserting 0


(6) Company Profile - Suzhou Smart motor Equipment Manufacturing Co.,Ltd


Suzhou Smart motor Equipment Manufacturing Co.,Ltd is a Chinese manufacturer, which is specialize in R&D, manufacturing and selling automatic equipments for motor production as well as exporting equipments to the world. The company now has nearly 81 employees including more than 10 engineers and technicians, with the building area about 5,000 square meters and hundered sets of advanced production and equipments under testing.
