Automatic Vertical 4 / 6 Pole Coil Winding Machine For Car Generator

Automatic Vertical 4 / 6 Pole Coil Winding Machine For Car Generator

  • High Light

    Automatic Armature Winding Machine

    ,

    Automatic Ceiling Fan Winding Machine

  • Name
    Coil Winding Machine For Car Generator
  • Transfer Number
    2-8pcs
  • Power Supply
    380v/50/60Hz 7Kw
  • Winding Head
    1-2 Pcs
  • Max Stack Height
    ≤70mm
  • Mould Life
    >1,000,000 Shots
  • Automatic Grade
    Full-Automatic
  • Wire Diameter
    Dia 0.1-1.0mm
  • Place of Origin
    China
  • Brand Name
    SMT
  • Certification
    ISO9001/SGS/CE
  • Model Number
    SMT-QLR70
  • Minimum Order Quantity
    1 Set
  • Price
    Negotiable
  • Packaging Details
    Wooden Case Suitable for Sea Transportation.
  • Delivery Time
    30 - 43 days for 1set
  • Payment Terms
    T/T, L/C,
  • Supply Ability
    2pcs/ 56 - 79 days

Automatic Vertical 4 / 6 Pole Coil Winding Machine For Car Generator

Eight working station coil winding machine



Automatic vertical coil winding machine for AC motor stator motor equipment



1. Machine features:

The machine is four winding heads with eight operation stations, high efficiency is its feature.The machine automatically put the coil into the transfer former orderly, especially suitable for high production capacity requirement,high slot filling rate,small slot opening stator coil winding. Winding mode such as auto skip,auto cutting and auto indexing could be completed at a time successively; parameter could be set in human-machine interface, continuous/discontinuous winding way and meets the 2 poles, 4 poles and 6 poles coils winding,



2. Application



This machine is suitable for 2 poles. 4 poles, 6 poles coils winding.



3. Operator step



1.Power on the machine

2.Thread wire this this motor

3. Set the winding parameter in the touch screen

4. Press the "start" button

5. Machine will do winding process automatically

6.After finishing the winding, machine will stop

7.Take out the wire from the tooling.



4. Information needed for Automatic Stator Coil Winding Machine inquiry


It will be better if customer could send us detailed drawing including below information.
1. Stator drawing
2. Stator winding drawing
3. Winding distribution drawing
4. Other technical requirement
If possible, it will be better if customer can send us samples.

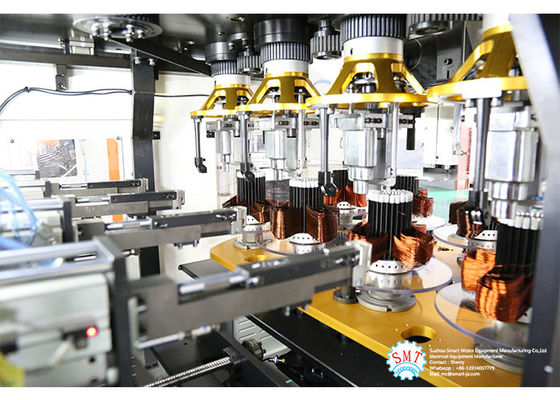

This machine has 8 winding station, all the four heads will do winding together. Stator coil winding machine

Automatic Vertical 4 / 6 Pole Coil Winding Machine For Car Generator 0

5. Main Technical Data




Model
SMT-LR100 SMT-LR150I SMT-LR150 II SMT_LR200 LR100 LR200
Winding Head 1 1 1 1 2 2
Wire Diameter(mm) 0.3~1.0 0.3~1.0 0.3~1.2 0.3~1.2 0.3~1.2 0.2~1.0 0.2~1.0
Unload Speed ≤2500r/min ≤2500r/min ≤2500r/min ≤2000r/min 3000 3000
Stack Height ≤80mm ≤120mm ≤150mm ≤230mm ≤70mm ≤70mm
Winding Precision + 0 + 0 + 0 + 0 + 0 + 0
Power Supply 380v/50/60HZ 8Kw 8Kw 9Kw 7Kw 7Kw
Air Pressure ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6Mpa ≥0.6pa ≥0.6pa
Weight ≈1350Kg ≈1600Kg ≈1600Kg ≈2200Kg ≈1950Kg ≈2300Kg
Dimension
(L×W×Hcm)
180×110×200 180×120×220 180×130×230 220×180×250 180×130×205 135×100×180



6. Machine main function and characteristic




Winding tooling: each machine has one set winding tooling and three vertical winding forms.
The whole set of tooling can be changed, and it takes about 15min.
The turntable is two stations structure. It adopts servo system to rotate and index transfer form.
Allow three wires winding simultaneously.
Main spindle is controlled by servo motor. The coil turn number accuracy is ±1 turn.
The working rotation speed can be set . Machine has no distinct vibration and noise.
Free of enamel damage and wire snap. Once the copper wire is run out, machine will automatically stop.
PLC can set turn number, winding speed, tooling sunk height, tooling sunk speed and winding direction.
X andY spindle of wire hooker and wire cutter adopts servo system. It can adjust the length of bridge wire and lead wire.
Tooling sunk adopts servo system. The max segment number of tooling sunk is 6.



7. OEM/ODM Profile


Taking full advantage of experienced engineers, skillful professionals, perfect equipment, strict manufacturing process control and wide coverage service net-work, we are dedicated to provide our customers with the optimized solution to electric motor manufacturing. So far, except the big market share in China, we export out machines to the worldwide countries such as USA, Italy, Australia, India, Brazil, Mexico, Turkey, Thailand, Vietnam, Iran, etc, and our machines share the great reputation among customers for it durable, reliable performance, reasonable price and good after-service.



 8. Production Line Profile



With good service, professional team and reliable quality, Nide provide customer with different kinds of AC motor, DC motor,BLDC motor manufacturing technical consulting service and Turn-key projecting service, including the motor cost evaluation, manufacturing know-how, staff training,and complete turn-key project.



9.  About Our Factory

Located in Suzhou, a beautiful city of industry, commerce heart in Yangtze River Delta, Smart is specialized in the R&D, manufacturing and sales of induction motor machinery. Our machines produced in Suzhou factory are mainly applied to induction motors such as washing machine motor, air conditioner motor, pump motor, coil motor, three-phase motor, fan motor and compressor motor, etc.
