Pull Through Inserting Machine / Coil Winding And Inserting Machine  SMT-QL80 / SMT-QL140

Pull Through Inserting Machine / Coil Winding And Inserting Machine SMT-QL80 / SMT-QL140

  • High Light

    automatic motor winding machine


    motor winding equipment

  • Name
    Pull-through Inserting Machine
  • Slot Number Range
    24-48 Slots
  • Warranty
    12 Months
  • Ppropriate Wire
    Copper Or Aluminium Wire
  • Color
  • Mould Life
    1,000,000 Slots
  • Place of Origin
  • Brand Name
  • Certification
    ISO / SGS Audit
  • Model Number
  • Minimum Order Quantity
  • Price
  • Packaging Details
    Plywood Box With Sealing.
  • Delivery Time
    45-75 days
  • Payment Terms
    T/T, L/C
  • Supply Ability
    1pcs / 45-69 days

Pull Through Inserting Machine / Coil Winding And Inserting Machine SMT-QL80 / SMT-QL140

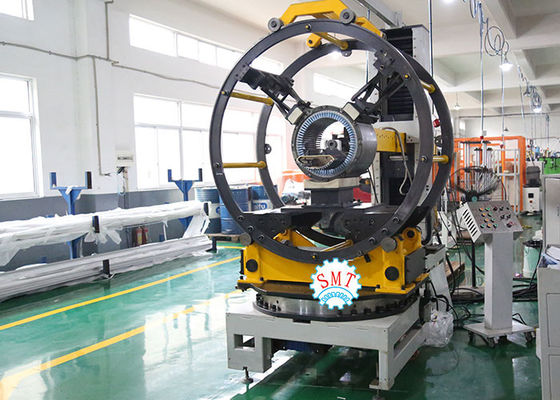

Four Working Station Automatic Stator Winding and Coil Inserting Machine


(1) Main Technical Features


1# Main Features:


1. Suitable for different frame sizes big motor stator with case or without case;

2. Adopting servo motor to control the inserting speed;

3. Working table and stator fixing shelf are easy to be rotated;

4. Machine can be operated by one operator, which improves the production efficiency.



2# Range:


SMT-QL80 for frame size: 180~250


SMT-QL140 for frame size: 280~355



3# Production output


4~8sets of stators per day according to stator frame size and slot fill factor


4# Tooling Changeover


1. OD is different, adjusting fixture directly.(15mins)

2. ID and slot shape is different, change the tooling.(Like attached.)

3. Pole is different, change the fixture rotating angle by foot switch, no need to change tooling.
