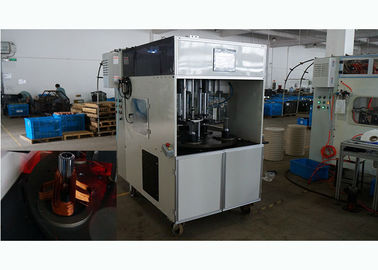

Electric Full - Automatic Coil Inserting And Drifting Machine For Three - Phase Motor
Product Summary
Electric Full - Automatic Coil Inserting And Drifting Machine For Three - Phase Motor Based on your production needs 1. Design the suitable product or production line for you ,OEM and ODM available. 2. We have professional and rich experience engineers in the domestic and overseas. 3. We will wind ...
Product Custom Attributes
automatic motor winding machine
,induction motor winding machine
Basic Properties
Trading Properties
Product Description

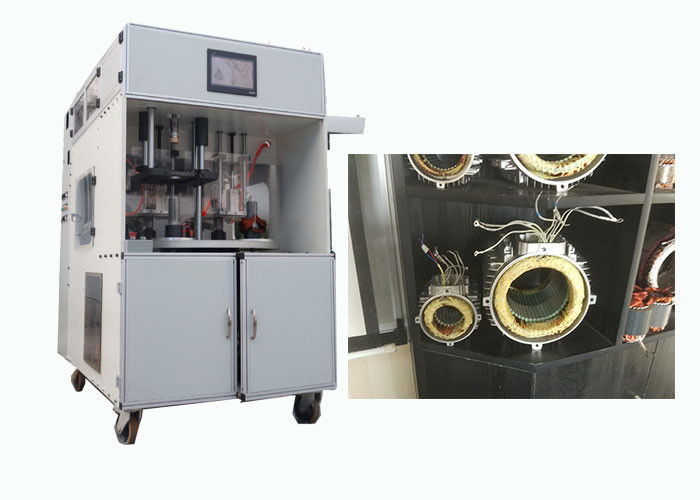

Electric Full - Automatic Coil Inserting And Drifting Machine For Three - Phase Motor
Based on your production needs
1. Design the suitable product or production line for you ,OEM and ODM available.
2. We have professional and rich experience engineers in the domestic and overseas.
3. We will wind and test the samples in our plant before delivery
1. Our Service:
| Product Name | Automatic Winding and Inserting Machine | Application | Electric motor stator production |
| Status | New | Paint | On request |
| Warranty time | One year after machine(s) arrive in customer’s plant | Service | Overseas service center available |
2.Basic Parameters
1.Basic machine complete with controls, less tooling.
2.Heavy duty construction.
3.All electric and pneumatic - no hydraulics.
4.Machine enamel paint on request.
5.Allen Bradley Programmable Controller.
6.Compact design on wheels for ease of relocation and
operator convenience.
7.Maximum stack height up to 4 inches, 102mm, with rapid
adjust feature.
8.Four-station turntable.
9.Smooth precise sinusoidal turntable index.
10.Specification storage for use with the Windows compatible computer.
3.SOFTWARE FEATURES:
a) Specification storage of over 1,000 winding patterns.
b) One (1) minute specification change.
c) Upload/download to disk capability.
d) Machine diagnostics utilizing visual basic software and full access to servo software.
e) Machine functions independent of computer for reliability.
f) Easy menu access to all machine winding parameters.
g) Maintenance recording and access password protected.
h) Pre-programmed maintenance schedules with operator prompting.
11. Maximum flyer speed up to 3,500 RPM, fully closed loop and tied to coilform jump for crossover and turn count control.
12. Capable of variable speed, either step to step or slow to jump for ± 0 turn count.
13. Capable of pulling up to two (2) #19 AWG, 0.95mm, wires in parallel (may be different sizes.)
14. Variable wire tension control.
15. Includes wire feeds from machine to wire spools. Customer to specify either ceramic eyelets or spring lined plastic tubing.
16. Fully electronically adjustable turn count, coilform jump, upper tooling index, and lead length control from the computer specification routine.
4. About Us
Take full advantage of experienced engineers , skillful professional , perfect equipment , strict manufacturing process control and wide coverage service net-work , we are dedicated to provide our customers with the optimized solution to electric motor manufacturing , so far , except the big market share in China , we export our machines to the worldwide countries such as USA Italy , Australia , India , Brazil , Mexico ,Turkey , Tailand , Vietnam Iran etc,and our machines share the great the reputation among customers for its durable , reliable perormance , reasonable price and good after sales.
