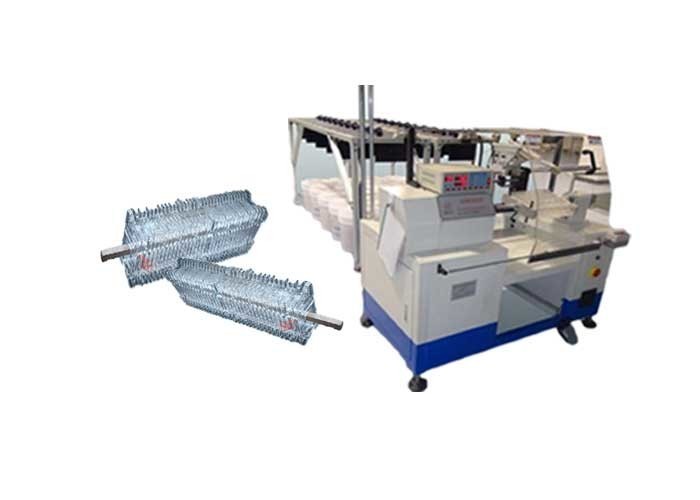

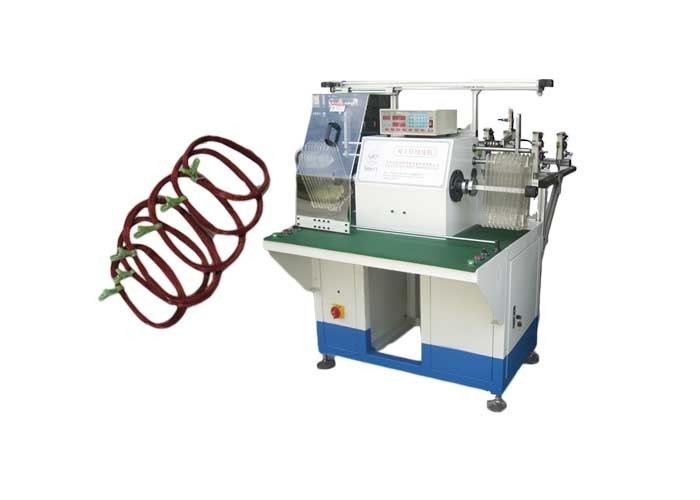

AC DC 3 Phase Stator Winding Machine 3200r/min 220V 7Kw

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Plywood Box With Sealing Bag
Delivery Period: 32 - 51 days
Payment Method: T/T,L/C
Supply Capacity: 1pcs / 32 - 51 days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO9001/SGS Audit
Model Number
SMT-R160
Name:
AC / DC 3 Phase / 1 Phase Stator Core Assembly Machine For Stator Coil Winding
Color:
White
Wire Speed:
≤3200r/min
Flier:
200mm
Transfer Number:
2-6pcs
Power Supply:
220v/50/60Hz 7Kw
Weight:
750kg
Dimension:
(L)1800X(W)1100X2200mm
Winding Head:
1-8
Air Pressure:
≥0.4MPa
Transfer Distance:
≥170mm
Highlight:

3 phase stator winding machine

,

220V stator winding machine

,

7Kw stator winding machine

Product Description
AC / DC 3 Phase / 1 Phase Stator Core Assembly Machine For Stator Coil Winding

Multistrand Type Coil Winding Machine is specially designed for multiple wire parallel coil winding applications including alternators, servo motors, and three phase motors. The machine features a specialized controller with programmable functions for arraying direction, winding start point, slow starting/ending, side stops, auto width adjustment, and auto reset.

Technical Specifications
Parameter Value
Swing diameter ≤350mm
Effective length of tooling ≤400mm
Parallel wire number ≤16 pcs
Wire diameter 0.2~1.5mm
Max RPM 1600RPM
Power supply 220V/50/60Hz 1.5Kw
Air pressure 0.4~0.6MPa
Machine Weight 900Kg
Machine Dimension 1550mm*1250mm*1550mm
Key Features
  • Specialized design for multiple wire parallel coil winding
  • Advanced controller with programmable winding parameters
  • Significant labor and cost savings
  • Precision winding capabilities for alternators, servo motors, and three phase motors
Competitive Advantages
  • Versatile application across different motor types
  • User-friendly operation and easy tooling changes
  • Customizable solutions available
  • Global support with overseas service centers
  • Proven track record in international markets including USA, Europe, and South America
AC DC 3 Phase Stator Winding Machine 3200r/min 220V 7Kw 0
