logo
products
PRODUCTS DETAILS
Home > Products >
Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output
Products

Stator Winding Machine

Stator Winding Inserting Machine

Paper Inserting Machine

Stator Lacing Machine

Coil Forming Machine

Electric Motor Winding Machine

Winding Inserting Machine

Wedge Cutting Machine

Stator Core Assembly Machine

Electric Motor Testing Equipment

Automatic Fusing Machine

Inserting And Drifting Machine
Contact Us
sales5@smt-winding.com
+86-13914006446
Contact Now
Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output
  • name
  • name
  • name
  • name

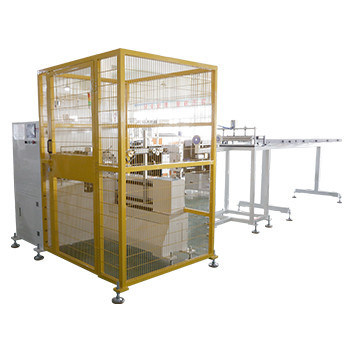

Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output

MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden Box Packaging Fit for Your Machine.
Delivery Period: 60-70 days
Payment Method: T/T,L/C
Supply Capacity: 1pcs / 60-70 days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO9001/SGS
Model Number
SMT-DR1200
Name:
Big Size Motor Stator Coil Winding Machine Semi-automatic
Flier:
200mm
Power Supply:
220v/50/60Hz 4.5Kw
Air Pressure:
0.4-0.7MPa
Power:
Electric
Slot Number:
24-48 Slots
Customized:
Customized
Max. Rotation Speed:
1000r/Min
Highlight:

220V/50/60Hz Motor Stator Coil Winding Machine

,

4.5Kw Armature Winding Machine

,

0.4-0.7MPa Air Pressure Coil Winding Machine

Product Description
Big Size Motor Stator Coil Winding Machine Semi Automatic
Product Description
This semi-automatic winding machine is designed for hook type commutator armatures, featuring PLC control and touch screen operation for precise winding parameters.
Key Features
  • Designed for winding hook type commutator armatures
  • PLC and touch screen control for easy operation
  • Automatic wire winding capability
  • Double winding flyer design
  • Four adjustable tension settings
  • Automatic armature feeding, winding, indexing, and wire cutting
Technical Specifications
Item Data
Model DR1200
Swing Diameter ≤900mm
Wire diameter 0.4 - 1.5mm
Parallel Wire No. ≤ 40 pieces
Air Pressure 0.4 - 0.6 MPa
Power supply 220V/50/60Hz, 3kw
Machine weight About 1100kg
Machine dimension (L×W×H) 2300 × 2200 × 2000mm
Applications
This machine is suitable for 2-pole and 4-pole coil winding, ideal for medium to large wire diameter armatures in various motor applications.
Machine Features
  • Includes one set of winding tooling with three vertical winding forms
  • Tooling change takes approximately 15 minutes
  • Two-station turntable with servo system rotation and indexing
  • Capable of three-wire simultaneous winding
  • Servo-controlled main spindle with ±1 turn accuracy
  • Adjustable working rotation speed with minimal vibration and noise
  • Automatic stop when copper wire runs out
  • PLC control for turn number, speed, tooling height, and winding direction
  • Servo-controlled X and Y spindles for wire hooker and cutter

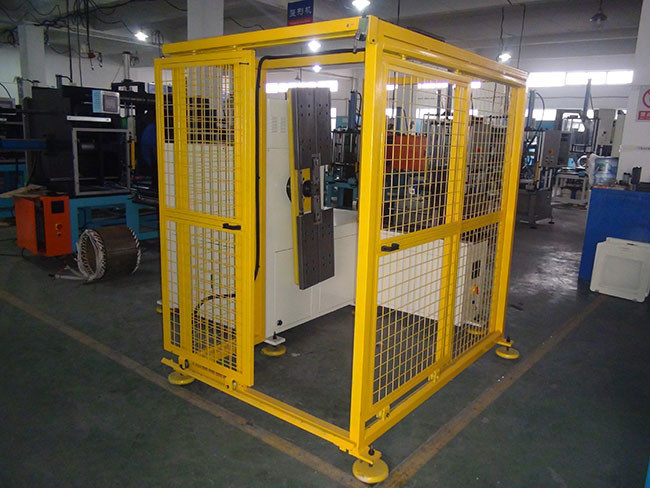

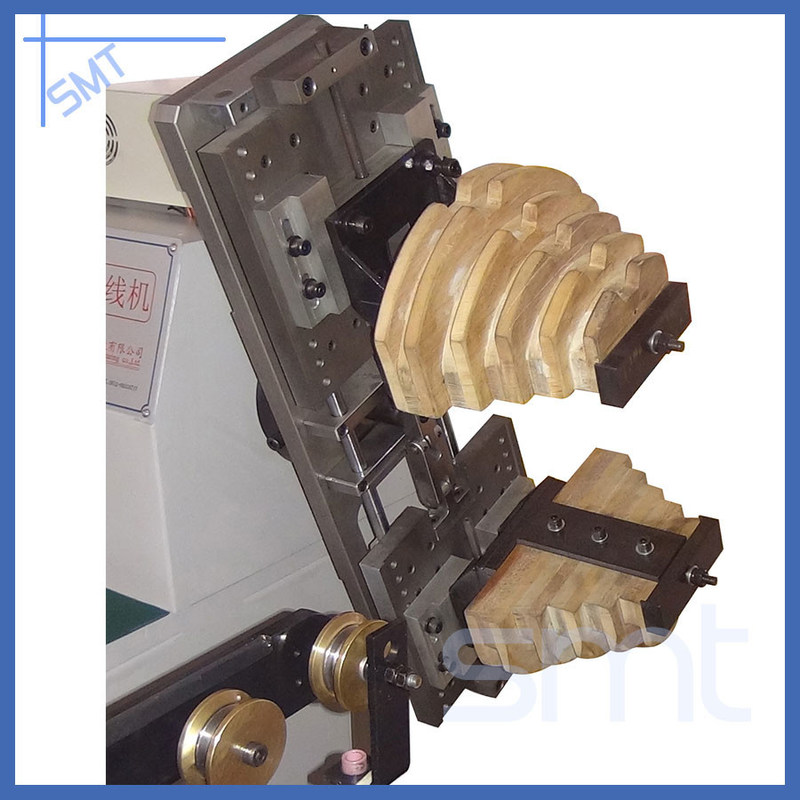

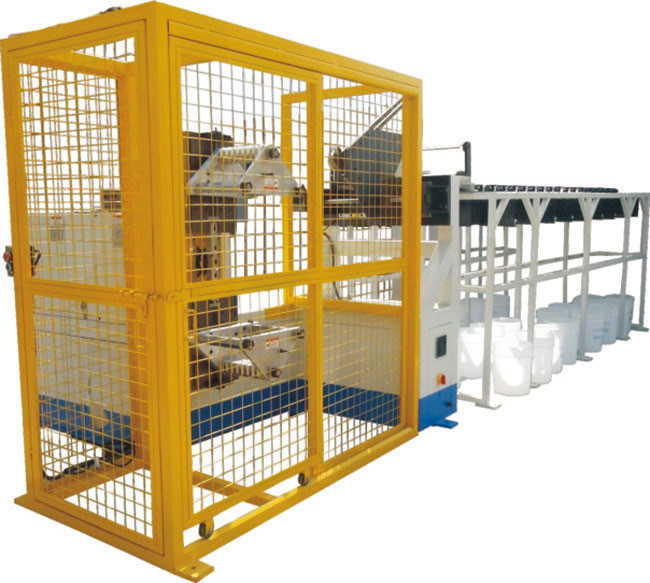

Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output 0 Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output 1
OEM/ODM Capabilities
Our experienced engineering team provides optimized solutions for electric motor manufacturing, with machines exported worldwide including USA, Italy, Australia, and more, known for durable performance and excellent after-sales service.
Production Line Services
We offer comprehensive technical consulting and turn-key project services for AC, DC, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, and staff training.
Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output 2
About Our Factory
Located in Suzhou, we specialize in R&D and manufacturing of induction motor machinery for various applications including washing machine motors, air conditioner motors, and compressor motors.
Tags:

automatic motor winding machine,

induction motor winding machine,

motor winding equipment

Recommended Products
Refrigerator / Air Conditioner Stator Motor Testing Equipment

Refrigerator / Air Conditioner Stator Motor Testing Equipment

Contact Now
Digital Motor Control Electric Motor Testing Equipment

Digital Motor Control Electric Motor Testing Equipment

Contact Now
Stator Motor Testing Equipment for Automatic Stator Winding Machine

Stator Motor Testing Equipment for Automatic Stator Winding Machine

Contact Now
Electric Motor Winding Equipment Pumo / Compressor Stator Integrated Test System Vacuum

Electric Motor Winding Equipment Pumo / Compressor Stator Integrated Test System Vacuum

Contact Now
Stator Vacuum Test System Electric Motor Testing Equipment ISO / SGS Audit

Stator Vacuum Test System Electric Motor Testing Equipment ISO / SGS Audit

Contact Now
Motor Winding Equipment / Stator Integrated Tester

Motor Winding Equipment / Stator Integrated Tester

Contact Now
SMT-AN96951V Electric Motor Testing Equipment / Armature Stator Testing Equipment

SMT-AN96951V Electric Motor Testing Equipment / Armature Stator Testing Equipment

Contact Now
products
PRODUCTS DETAILS
Products

Stator Winding Machine

Stator Winding Inserting Machine

Paper Inserting Machine

Stator Lacing Machine

Coil Forming Machine

Electric Motor Winding Machine

Winding Inserting Machine

Wedge Cutting Machine

Stator Core Assembly Machine

Electric Motor Testing Equipment

Automatic Fusing Machine

Inserting And Drifting Machine
Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output
  • name
  • name
  • name
  • name
Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output
MOQ: 1 Set
Price: Negotiable
Standard Packaging: Wooden Box Packaging Fit for Your Machine.
Delivery Period: 60-70 days
Payment Method: T/T,L/C
Supply Capacity: 1pcs / 60-70 days
Detail Information
Product Description
Detail Information
Place of Origin
China
Brand Name
SMT
Certification
ISO9001/SGS
Model Number
SMT-DR1200
Name:
Big Size Motor Stator Coil Winding Machine Semi-automatic
Flier:
200mm
Power Supply:
220v/50/60Hz 4.5Kw
Air Pressure:
0.4-0.7MPa
Power:
Electric
Slot Number:
24-48 Slots
Customized:
Customized
Max. Rotation Speed:
1000r/Min
Minimum Order Quantity:
1 Set
Price:
Negotiable
Packaging Details:
Wooden Box Packaging Fit for Your Machine.
Delivery Time:
60-70 days
Payment Terms:
T/T,L/C
Supply Ability:
1pcs / 60-70 days
Highlight

220V/50/60Hz Motor Stator Coil Winding Machine

,

4.5Kw Armature Winding Machine

,

0.4-0.7MPa Air Pressure Coil Winding Machine

Product Description
Big Size Motor Stator Coil Winding Machine Semi Automatic
Product Description
This semi-automatic winding machine is designed for hook type commutator armatures, featuring PLC control and touch screen operation for precise winding parameters.
Key Features
  • Designed for winding hook type commutator armatures
  • PLC and touch screen control for easy operation
  • Automatic wire winding capability
  • Double winding flyer design
  • Four adjustable tension settings
  • Automatic armature feeding, winding, indexing, and wire cutting
Technical Specifications
Item Data
Model DR1200
Swing Diameter ≤900mm
Wire diameter 0.4 - 1.5mm
Parallel Wire No. ≤ 40 pieces
Air Pressure 0.4 - 0.6 MPa
Power supply 220V/50/60Hz, 3kw
Machine weight About 1100kg
Machine dimension (L×W×H) 2300 × 2200 × 2000mm
Applications
This machine is suitable for 2-pole and 4-pole coil winding, ideal for medium to large wire diameter armatures in various motor applications.
Machine Features
  • Includes one set of winding tooling with three vertical winding forms
  • Tooling change takes approximately 15 minutes
  • Two-station turntable with servo system rotation and indexing
  • Capable of three-wire simultaneous winding
  • Servo-controlled main spindle with ±1 turn accuracy
  • Adjustable working rotation speed with minimal vibration and noise
  • Automatic stop when copper wire runs out
  • PLC control for turn number, speed, tooling height, and winding direction
  • Servo-controlled X and Y spindles for wire hooker and cutter
Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output 0 Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output 1
OEM/ODM Capabilities
Our experienced engineering team provides optimized solutions for electric motor manufacturing, with machines exported worldwide including USA, Italy, Australia, and more, known for durable performance and excellent after-sales service.
Production Line Services
We offer comprehensive technical consulting and turn-key project services for AC, DC, and BLDC motor manufacturing, including cost evaluation, manufacturing know-how, and staff training.
Big Size Motor Stator Coil Winding Machine Semi-automatic with 220V/50/60Hz Power and 4.5Kw Output 2
About Our Factory
Located in Suzhou, we specialize in R&D and manufacturing of induction motor machinery for various applications including washing machine motors, air conditioner motors, and compressor motors.
Tags:

automatic motor winding machine,

induction motor winding machine,

motor winding equipment

SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd.
North End Puzhuang Dadao,Xukou Industrial Area,Wuzhong District,Suzhou,China
Tel: +86-13914006446
sitemap |  Privacy Policy | China Good Quality Stator Winding Machine Supplier. Copyright © 2016-2026 SMT Intelligent Device Manufacturing (Zhejiang) Co., Ltd. . All Rights Reserved.
